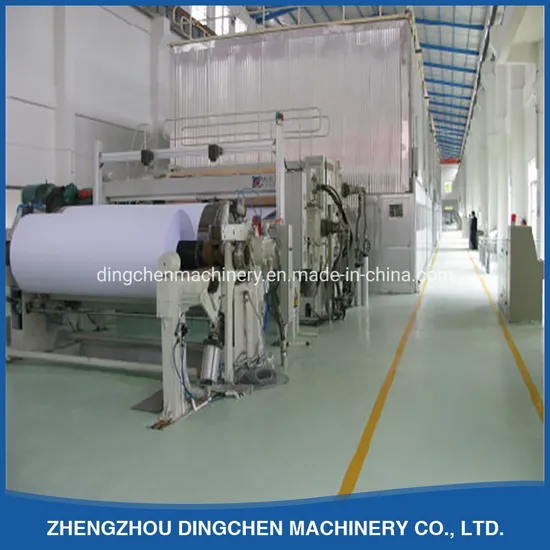

Dingchen Machinery Good Quality Writing Paper Making Machine (2100mm 30tpd)

Product Description

Dingchen Machinery Good Quality Writing Paper Making Machine (2100mm 30tpd)

Introduction:
For complete cultural copy paper making machine, There are THREE Main Parts:
1.Pulping equipment ( Different Raw Material: Waste Paper, Virgn Pulp Board, Mixed Pulp. )
2.Cultural paper making machine ( Different Paper Width, Paper Weight, Production Capacity. )
3.Paper processing equipment ( Different type according to customer's requirement. )
Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.

Technical Parameter

1	Raw material	Waste paper
2	Output paper	Culture paper, Writing Paper, Printing Paper,A4 paper
3	Output paper width	2100mm
4	Capacity	30 tons per day
5	Layout	Left or right hand machine

Tips

Different model has different specifications
If customer want to get a quotation as soon as possible, please provide the following information for us :
1.Output paper type;
2.Capacity(tons/24hours);
3.Output paper weight(gram/m2);
4.Raw material
Main Equipment

NO.	Name	Function
1	Stainless steel cylinder mold	Extract the pulp fiber to felt
2	Alloy dryer cylinder	Dry the wet paper
3	Double-layer dryer hood	Cover dryer and collect the hot&moist air diffused by dryer
4	Axial-flow ventilator	Ventilate and pull out the hot&moist air in the exhaust hood
5	Roots vacuum pump	Provide vacuum force for suction box
6	Air compressor	Provide compressed air for pneumatic devices
7	Frequency conversion controlling cabinet	Control the speed of the machine
8	Vacuum suction box	Absorb water contained in the wet paper
9	High concentration hydrapulper	Break the waste paper into pulp
10	High frequency vibrating screen	Separate and remove large impurity in the pulp
11	Impeller	Stir pulp and keep pulp well-mixed with water
12	Pressure screen	Getting ride of impurities
13	Bleacher	Bleach and whiten pulp
14	Double disc refiner	Grind, refine and fibrillation
15	Low concentration sand remover	Remove sand and impurities
16	Pulp pump	Pulp transportation
17	Electrical operation cabinet	Control machine operation
18	Boiler	Provide steam for the drying section

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping
