Cardboard Tubes Cores Winding Making Forming Machines

Product Description

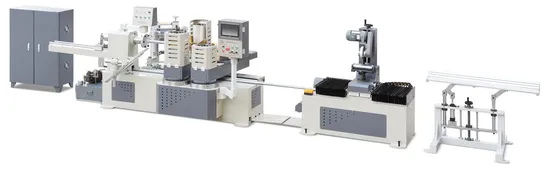

CFJG-SK-150 Servo Controlled Paper Tube Making Machine

Technical Parameter
Paper Layer	25 Layers
Inner Diameter	50-250mm (customizable)
Wall Thickness	1-15mm
Winding Speed	1-25meters/min
Winding Nose	Four noses double belts
Length Fixing	By Encoder
Cutting Way	Servo Synchronous Tracking Cut
Cutting Length	500-5000mm (speed will be low when cutting length < 1000mm)
Gluing Way	Double sides
Shaft Fixing	by Flange
Speed Control	By Inverter
Operator	1-2 persons
Working Air Pressure	0.6Mpa
Power Supply	380V/3Phase/50Hz
Measurement & Weight
Measurement	4600*1950*1900mm
Working Space	15000*9000mm
Weight	7000kgs

Configuration
Gluing System	24 Layers Spraying Type
Paper Reel Stand including Paper Lifting Device	24 Layers Integral Type
Inner Paper Shelf	1 Set
Discharging Shelf	1 Set
Mandrel Shaft (mold)	2 Pieces
Belt	4 Pieces
Useful Tool	1 Set
Blades	5 Pieces

Four-heads Double-belts Spiral Winding
Servo Motor Controlled Cutting System; Tube Lengths no error.
Cutting Length 500-5000mm ((speed will be low when cutting length < 1000mm))
Equipped with 24 layers paper reel stand *1set
Equipped with 24 layers spraying glue unit *1set
Inner paper stand 1 set
Paper Tube Collector * 1 set
Finished tubes
Packing & Delivery
Company Profile
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has 15+ years' experience on paper tube & core machines manufacturing and 7+ years on paper straw machines manufacturing.
Main products are below:
-- Paper straws making machine
-- Paper tube & core making machine
-- Paper tube & core cutting machine
-- Jumbo paper slitting rewinding machine
-- Related machines
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan, Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan,USA, Mexico, Colombia, Ecuador etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
Our Overseas Business
Our Offices & Team
Our Workshops

---
