Product Details
Product Description
Product Description

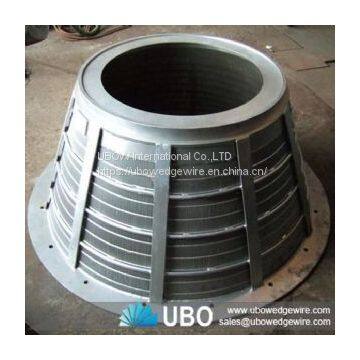

The equipment screen mesh is a cylinder, material, after handling by screw feeder, mixing and atomization into a screen cage, so that the material also driven by centrifugal force and cyclone by rotating the blade, forcing material injection over the screen cage, fine material discharged from fine outlet, the coarse material which can not cross the screen cage, discharged from the coarse outlet. Stainless steel centrifuge sieves and profile screens are all custom made. Length, width, shape, and spacing of profile wire are engineered to meet your special job requirements. And the individual wire on the working surface of the wedge wire screen or stainless steel screen can be manufactured at various angles to better serve your needs.
Features:
1. Combining the latest technology and years of experience as a whole.
2. Key components introduced abroad, lone service life, low maintenance cost.
3. All parts contact with the material is stainless steel, no material contamination.
4. Sieve basket is calibrated through dynamic equilibrium by the domestic authority body.
5. Sieve made from laser perforating on titanium alloy plate.
6. To facilitate the automatic design for the centrifugal sieve group, the CIP system and chain automatic control can be easily realized.
7. Advanced surface treatment technology ensures the good looking and resistance of oil and dirt.
8. Nozzles tested by strict examination in pressure and flow rate
9.Big capacity, low power consumption, stable operation, high starch extraction rate and easy installation.
10. Widely used for starch extraction in the starch processing factory.
Specifications:
Triangle wire size:
Triangle wire
| Width
| 1.5mm
| 2.2mm
| 2.8mm
| 3.1mm
| 3.4mm
| 5.0mm
|
height
| 4.0mm
| 4.5mm
| 5.0mm
| 6.0mm
| 7.5mm
| 10.0mm
|
Slot
| 0.10mm-10mm
|
Support rod size:
Support rod
| Width
| 1.0mm
| 1.5mm
| 1.8mm
| 2.7mm
| 3.2mm
| 3.6mm
|
height
| 2.0mm
| 2.5mm
| 3.0mm
| 4.2mm
| 5.3mm
| 5.7mm
|
Slot
| 0.2mm-5mm
|
>>
