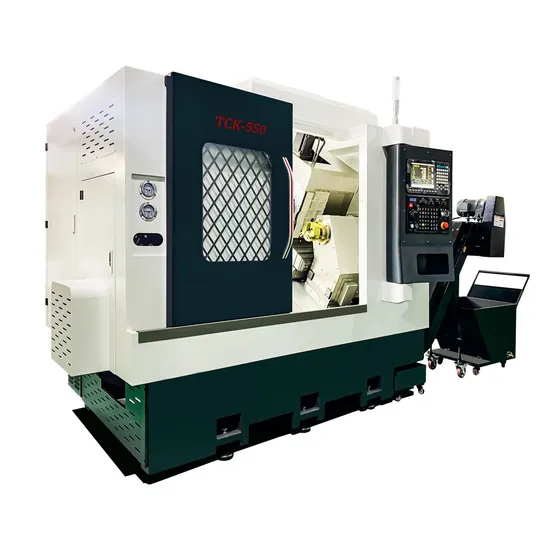

Dual spindle cnc lathe machine with counter spindle
Model Number : TCK-550
* Stable performance and excellent structure
* High precision
* Automatic feeding
* Easy to operate
* Customized service provided
Detailed Photos
Quality CNC system Siemens 828D
Comply with the ergonomic interactive interface to complete the precision machining requirements . (Fanuc/Mitusubishi/Siemens/Syntec)
Choose Materials Carefully
Keep improving and use high-quality materials to make the machine last longer.
Quality castings
The base is cast as a whole, with a 45-degree inclined bed, high strength and good shock absorption .
3-jaw chuck (Main spindle:6 inch,counter spindle : 5 inch.)
The chuck of this machine tool is a standard configuration, which can meet the processing needs of most users. Products from other manufacturers can also be configured according to user needs.
Counter Spindle
Driven Turret with BMT45 tools
Specifications :
| Max. turning diameter over bed | Φ500mm |
| Max. turning diameter over slide | Φ200mm |
| Max. machining diameter (disc workpiece) | Φ300mm |
| Max. machining length | 300mm |
| Maximum bar through hole diameter | Φ45mm |
| Z-axis travel | 320mm |
| X-axis travel | 180mm |
| Y-axis travel | ±50mm |
| X/Y/Z-axis fast move | 24/24m/min |
| X/Y/Z-axis servo motor | 1.8/1.8/1.8kw |
| Spindle nose | A2-5 |
| Spindle through hole diameter | Φ56 |
| Spindle max. speed | 4500rpm |
| Spindle power | 7.5~11kw |
| 3-jaw chuck | 6" |
| Power Turret with Live Tool | 15 stations |
| Live Tool Speed | 6000rpm |
| Tool Diameter | Φ16 |
| Distance from spindle center to ground | 1010mm |
| Distance from spindle center to front door | 450mm |
| Positioning accuracy | ±0.005mm |
| Repeat positioning accuracy | ±0.003mm |
| Bed slant | 30° |
| X-axis linear rail | 35mm roller type |
| Z-axis linear rail | 35mm roller type |
| X-axis screw/pitch | Φ32mm/10mm(double nuts) |
| Z-axis screw/pitch | Φ40mm/10mm(double nuts) |
| Center height of turret | 80mm |
| Machine Size | 2850x1865x2080mm |
| Machine weight | 4200kg |
| Main Components Brand |
| Controller | Syntec in Taiwan |
| X/Y/Z-axis servo motor | Syntec in Taiwan |
| X/Y/Z-axis Ball Screw | TBI in Taiwan China |
| X/Y/Z-axis Guide Rail | Hiwin/PMI in Taiwan |
| Spindle Bearings | NSK in Japan |
| Power Turret | Swift in Taiwan |
| 3-jaw chuck | BDEFU |
| Hydraulic power unit | Menfu in Mainland China |
| Electric Counter Spindle Information |
| Counter spindle nose | A2-4 |
| 3-jaw chuck | 5" |
| Counter spindle speed | 6000rpm |
| Spindle Power | 11kw |
| Distance between two spindle noses | 680mm(A2-5/A2-4) |
| Reverse machining length | 120mm |
| Max. machining diameter (disc workpiece) | Φ200mm |
| Linear guide rail | 35mm roller type |
| Accessories |
| Foundation pads | 1set |
| Chip conveyor with cart | 1set |
| Chuck wrench | 1pc |
| Tool kit | 1pc |
FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.
>>
