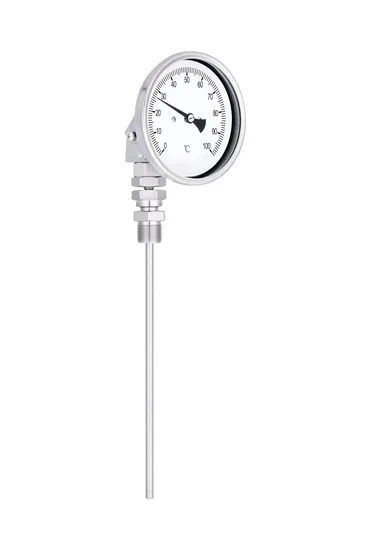

Hollysys Industrial Temperature Meter Sensor All Steel Bimetal Thermometer Wssf (N) Bimetallic Thermometer

Product Description

WSSF bimetallic thermometer series is a kind of temperature measurement instrument suitable for direct measurement of vapor and liquid temperature. The imported bimetallic sheet is used as the temperature measuring element, which has high speed and high precision. 304SS stainless steel plasma welding shell, spinning sealing process, has strong shock resistance, splash resistance and corrosion resistance, and is easy to read, durable. It is widely used in petroleum, chemical industry, machinery, shipbuilding, power generation, textile, printing and dyeing, medicine and other industrial and scientific research departments.
Application
· All stainless steel bimetallic thermometer series can directly control the temperature of various liquid, gas and vapor media in surveillance production site.
· All stainless steel shock-resistant bimetallic thermometer series is more suitable for high dynamic vibration environments.
· Widely used in petroleum, chemical, machinery, shipbuilding, electric power, textile, printing and dyeing and other industrial and scientific research departments.
Technical Parameters
· Nominal diameters: Φ40, Φ60, Φ63, Φ76, Φ80, Φ100, Φ127, Φ150
· Indication accuracy: 1.0%, 1.5%, 2.5%
· Measurement range:-80 ~ 600 ºC
· Process connection: No fixtures
· Threaded connection (movable external thread, movable internal thread, fixed thread, clamping thread) flanged (movable flange, fixed flange, sanitary flange)
· Guard material: 304SS, 316SS, (customizable as per user) Guard diameter: Φ6.35, Φ8, Φ10, Φ12
· Case material: 304SS, 316L
· Instrument pointer: Aluminum alloy (black)
· Instrument dial: aluminum alloy (black on white background)
· Instrument glass: polycarbonate, flat glass, safety glass
· Protection level: IP54, IP65
Options
· Instrument type: Locating needle type (Φ63, Φ100, Φ150)
Memory needle type (Φ63, Φ100, Φ150)
· Connection mode: sanitary connector
· Dial scale: single scale, double scale, color segment Instrument filling liquid: glycerin, silicone oil, fluorine oil
· Sheath connection: threaded connection (movable external thread, movable internal thread, fixed thread, clamping thread) flanged (movable flange, fixed flange, sanitary flange)
· Sheath material: material selected according to medium and temperature Shims material: copper, tetrafluorine (PTFE)
Dimensions

Type	Nominal diameter		D1	a	H	d	l	M (F)
Axial	Φ40		41	27	42~62	Φ6. 35 Φ8 Φ10 Φ12	50~2000	M14 × 1.5 M20 × 1.5 M27 × 2 G1/2 "1/2" NPT; F (flange standard) See selection table for details
	Φ60		60	21	36~56
	Φ63		68	18	33~53
	Φ76		76	21	36~56
	Φ100		101	21	36~56
	Φ127		128	22	37~57
	Φ150		150	23	38~58
Radial	Φ40		41	27	56~76
	Φ63		68	40	83~103
	Φ80 wild card		83	43	98~118
	Φ100	Wild card	100	44	115~135
		Neckar	101	50	116~136
	Φ127 Necal Card		128	50	143~163
	Φ150 Necal Card		150	50	165~185
Universal	Φ60		60	21	106~126
	Φ63		68	18	103~123
	Φ76		76	21	106~126
	Φ100		101	21	106~126
	Φ127		128	22	107~127
	Φ150		150	23	108~128

All-steel radial thermometer
All-steel axial thermometer
All-steel universal thermometer
Selection Table

WSSF	Bimetallic thermometer
N (oil-filled)	N: shock-resistant type None: Ordinary
Nominal diameter 4	1: Φ40
	2: Φ60
	3: Φ76 (80)
	4: Φ100
	5: Φ127
	6: Φ150
	8: Φ63
Mounting structure 8	0: Axial
	1: Radial
	8: Universal
Installation form 16	Installation form		Diameter
	0: No Fixtures		6: Φ6.35
	1: Movable External Thread		8: Φ8
	2: Movable Internal Thread		10: Φ10
	3: Fixed Thread		12: Φ12
	4: Movable Flange		T0: Others
	5: Card Sleeve Threads
	6: Hygienic Chuck
Install Spec M4	M: metric thread	G: Straight pipe thread	N: taper thread	F: flange/sanitary chuck
	1: M14 × 1.5	1: G1/4 "	1: 1/4 "NPT	For flanges, see Table 1, Notations 1 ", 1.5", 2 "for sanitary chucks
	2: M16 × 1.5	2: G3/8 "	2: 3/8 "NPT
	3: M20 × 1.5	3: G1/2 "	3: 1/2 "NPT
	4: M 27 × 2	4: G3/4 "	4: 3/4 "NPT
	5: M33 × 2	5: G1 "	5: 1 "NPT
	M1, G1, N1 can only use fixed threads
Range W (0 to 100)	Temperature range:-80 to 600 ºC
Insertion length L = 150	Insertion depth L L = 50 to 2000mm Thread length not included

Packaging & Delivery

Category	International Commercial Terms (Incoterms)	Terms of Payment	Nearest Port
All Steel Bimetal Thermometer WSSF (N)	CIF, CFR, DAP	LC, T/T, D/P	Shanghai, Guangzhou, Tianjin
