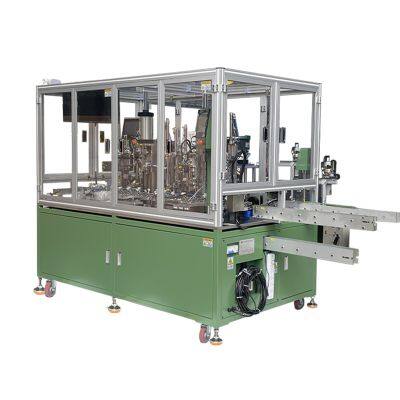

| Motor rear cover assembly equipment introduction |
|
| Location process | Sample without capacitor: All materials are supplied by vibration plate (bearing is under discharging), and the appearance of the product is free from defects and meets the requirements of the drawing. Discharge docking three-piece assembly machine. For missing assembly and assembly errors there is sorting, |
| Rated input voltage | AC220V /50HZ； |
| Air pressure | The working pressure is 0.5~0.7MP; |
| Air source interface dimensions | φ12 quick connector; |
| The discharging height of the equipment | The discharging height of the finished motor rear cover is 700MM |
| Overall size and color | The estimated length, width and height of the device 2000 x 1350 x 1800 (MM) are subject to the actual device dimensions |
| The overall structure is compact, paint parts color Wanbao to green; |
| The frame part adopts aluminum profile structure specification (40 x 40) mm, transparent acrylic; |
| The production efficiency | The capacity of the equipment is 1000-1200 per hour |
| Interface | Man-machine operation interface, with the necessary protection function; |
| Unparallel ease of use | After loading the material, 1 manual guard, lack of material alarm function; |
| security | Must ensure safe operation and good grounding. |
| Ease of maintenance | UC-MAUC； |
| Basic Device Configuration | Bearing manufacturer Jingyi bearing |
| Optical fiber, sensor manufacturers Omron |
| Controller (PLC) manufacturer Xinjie |
| Operating panel (touch screen) manufacturer Xinjie |
| Motor manufacturer Oneng |
| Pneumatic components manufacturer AirTAC; |
| Buffer manufacturer AirTAC |
| Drawing list of wearing parts | PG Flash |
| Support for custom attributes. |
