Horizontal Powder Tablet Double Sigma Arm Mixer Stainless Steel Blender

Product Description

Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We are professional manufacturer of mixing machine,grinding machine,drying machine and other customized machines,we accept OEM,ODM. Products Description CH Series Groove Shape Mixer 1.Main Application:

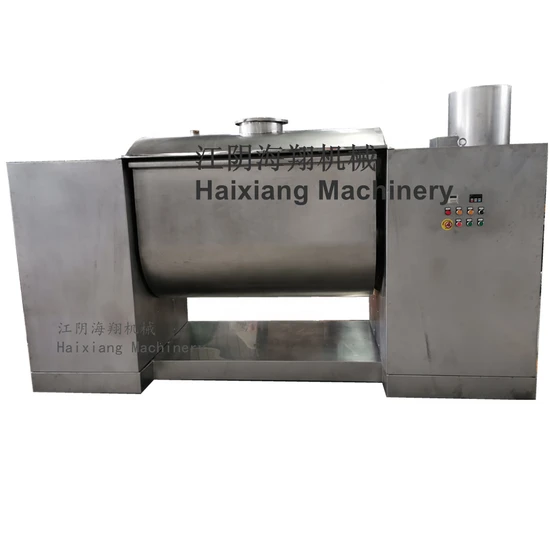

CH Series Groove Shape Mixer is made of stainless steel and applied in chemical,foodstuff industry for mixing powder and mash.
2.Operating Principle:
In the machine,S-shaped stirring paddle rotates by the mechanical rotational system.It can achieve the accurate mixing.Operator can set time to finish the process automatically on the operating panel to control the quality of mixture.
3. Technical Specification

Model	Total volume (Litre)	Bucket Speed (RPM)	Stirring Motor Power(KW)	Discharge Motor Power(KW)	Overall size(mm)	Weight(kg)
CH-50	50	24	1.5	0.5	1200*500*950	320
CH-100	100	24	2.2	0.55	1400*580*1000	350
CH-150	150	24	3	0.75	2000*630*1150	410
CH-200	200	24	4	1.1	2300*750*1350	450
CH-300	300	24	5.5	1.5	2700*850*1500	520
CH-500	500	24	7.5	2.2	2940*900*1700	680
CH-1000	1000	24	15	4	3204*1050*1806	1200

FAQ 1.what's your raw material?do you know the density of your raw material? for example flour,520g/L
2.what capcity do you require
for example 300kg/batch,500L/batch,500lbs/batch
3.what's your industry voltage in your factory?we only accept 3 phase power supply.
foe example 380V,50HZ,3PH;220V,60HZ,3PH;we accept customize.
4.what's the material of the mixer do you require?
for example carbon steel,contact parts stainless steel 304,all parts stainless steel 304,contact parts stainless steel
316,Titanium material.
5.is there any other requires for the mixer?
for example heating and cooling jacket,double sigma type or other. Details Images single ribbon suitable for powder material,wet material,paste material and so on. double ribbon type suitable for wet material,watery material and so on. double sigma type suitable for powder material,wet material and so on. Recommend Products micro pulverizer grind material from 10mm to 40-320mesh.no screen design Vacuum Conveyor lift material from ground to the machine. table type universal grinder grind material from 10mm to 12-120mesh. Packing and Shipping Company Profile

---
