| US$30,000.00-35,000.00 | 1 Piece (MOQ) |

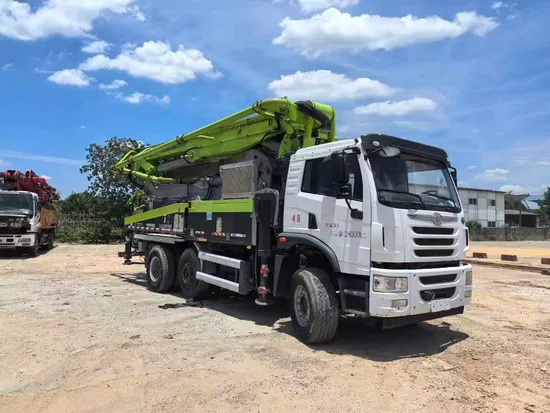

| (33m) Whole Vehicle Parameters | Overall size:(LxWxH) | 1.1x2.5x3.7m |
| Kerb Mass | 20000kg | |
| Boom & Leg Parameters | Vertical Boom Height | 32.2m |
| Horizontal Boom Height | 28m | |
| Vertical Boom Depth | 20.8m | |
| Length /Turning Angle of Section 1 | 7120mm/90° | |
| Length /Turning Angle of Section 2 | 5470mm/180° | |
| Length /Turning Angle of Section 3 | 5200mm/45° | |
| Length /Turning Angle of Section 4 | 5150mm/230° | |
| Length /Turning Angle of Section 5 | 5000mm/360° | |
| Boom Folding Type | RZ | |
| Turning Angle of Slewing Mechanism | ±365° | |
| Span between Front Legs (mm) | 5850mm | |
| Span between Rear Legs (mm) | 5420mm | |
| Distance between Front and Rear Legs (mm) | 6300mm | |
| Unfolding Mode of Legs | X | |
| Pumping System Parameters | Concrete Distribution Valve Type | S |
| Theoretical Concrete Pumping Capacity | 90m3/h, 68 m3/h | |
| Theoretical Pumping Pressure | 8 Mpa | |
| Theoretical Pumping Times | 26,19 times/in | |
| Inner Diameter of Concrete Cylinder | 230,200,mm | |
| Cylinder Stroke | 2000,1800,mm | |
| Diameter of Delivery Pipe | 125mm | |
| Length of Outlet Hose (mm) | 3000mm | |
| Diameter of Outlet Hose (mm) | 125mm | |
| Hydraulic Transmission System Parameters | System Working Pressure | 31.5 Mpa |
| Displacement of Main Hydraulic Oil Pump | 190, 130L/RPM | |
| Oil Cylinder Hydraulic Seals | Parker | |
| Hydraulic Oil Tank Capacity | 480L | |
| Cooling Mode of Hydraulic Oil | wind | |
| Electric Control System Parameters | Control Power Supply | 24 V |
| Working Voltage | 24 V |
