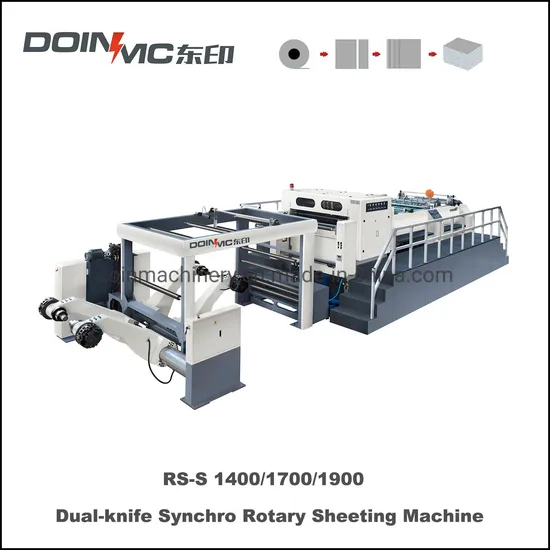

Helix Knife Double Blade Synchro-Fly Paper Roll Sheeting Machine with Twin Knife Rotary Sheeter

Product Description

Helix Knife Double Blade Synchro-Fly Paper Roll Sheeting Machine with Twin Knife Rotary Sheeter
Detail
Machine Introduction:
The machine adopts Dual Knife Synchro-fly Cutting Method, so that the cut sheets have no deckle edge, no dust, and no inclination. And the machine is high precision, and can be connected to the printing machine directly.

Model	RS-S 1400	RS-S 1700	RS-S1900
Web Width range	400-1400mm	400-1700mm	400-1900mm
Max. Unwinding Dia.	1900mm (71")
Thickness Range of Paper	up to 1000gsm
Cutting Method	dual knife synchro-fly cutting
Max. Cutting Speed	300 cuts/min
Max. Linear Speed	300m/min
Sheeting Length Range	450-1600mm
Cutting Precision	±0.2mm
Sheet Square-ness	±0.25mm
Slitting Format	2 Sheets
Max Sheeting Pilling Height	1700mm
Machine Weight (kg)	16000	18000	20000
Power Supply	380V/220V*50Hz
Air Supply	0.8Mpa
Overall Dimension (L*W*H)	13500*4800*2630(mm)

Shipping
Company Introduction:
Wenzhou Dongyin Machinery Manufacturing Co., Ltd. Established in 2019, we are growing out from Ruian City Dongfang Machinery Manufacture Co., Ltd.(since 1993) We take the good technical tradition from it, and develop more stronger soft packing material roll sheeting machine series. Absorbing more new advanced technology, we have brand upgrade of our old products both in pre-press and post-press industry.
We will keep our core-value to offer grate service to each customers home and aboard. Offer qualify machine, make client getting rich. Good service, good faith. We DONGYIN people always stand by.
Standard configuration
1. Prismatic adjustment system for paper 1 SET
2. Paper conveying appliance 1 SET
3. Automatic paper trimming and piling system 1 SET
4. Electrical control system 1 SET
5. Motor driving system 1 SET
6. Accessory 1 SET
7. Face cone shaftless stand 4 SET
8. Paper tension control system 4 SET
9. Operation system: LCD man-machine interface 1 SET
10. Main drive system: AC servo motor 1 SET
11. Round Cutter Slitting System 3 SET (Pneumatic drive)
12. Sheet kicking device
Customized model, please contact our sales by inquiry here directly.
We will reply by email or phone call as soon as possible.

---
