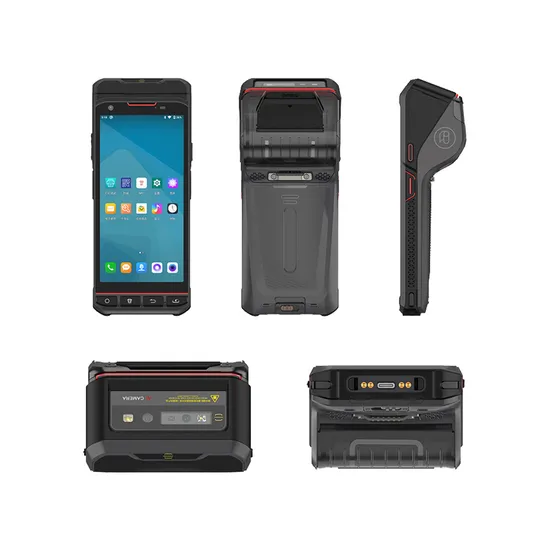

Android PDA with Built in Thermal Printer Android 13 IP54 Rugged PDA Industrial NFC Mobile Terminal S70

Product Description

Android PDA with Built in Thermal Printer Android 13 IP54 Rugged PDA Industrial NFC Mobile Terminal S70 Product Description
Product Parameters

Performance
OS	Android 13.0 OS (Android 10 at optional)
CPU	Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor
RAM+ROM	2GB+16GB (optional 4GB+64GB)
Expand memory	Micro SD (TF) supports up to 128GB
Data Communication
WLAN	Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol
WWAN	2G: GSM (850/900/1800/1900mhz) 3G: WCDMA (850/900/1900/2100mhz) 4G: FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41
Bluetooth	Support Bluetooth 5.0+BLE Transmission distance 5-10 meters
GNSS	Support GPS, Galileo, Glonass, Beidou
Thermal Sticker Printer
Printing speed	70mm/s
Print points	384 dots
Paper width	58mm
Paper diameter	35mm
Paper type	Support for sticker / label black mark printing or receipt printing
Camera
Rear camera	13MP HD camera, support auto focus, Flash, Anti-shake, Macro shooting
Front camera	2MP color camera
Data Collection
2D Imager scanner	Newland E483 Honeywell N5703 N6703, 6602
1D Symbologies	Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC, etc.
2D Symbologies	PDF417, Micro PDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, Maxicode, Hanxin Code,etc.
ID Card(Optional)
Radio frequency technology	Comply with ISO/IEC 14443 type B standard, GA450-2003 General Technical Requirements for desktop ID card Reader, 1GA450-2003 General Technical Requirements for desktop ID Card Reader Amendment No. 1 (draft)
Security module	Radio frequency technology
Distance	0 ~ 5cm
Reading time	<1.55s
Frequency	13.5MHz±7kHz
NFC (Optional)
Frequency	13.56MHz
Protocol	support ISO14443 A / B, 15693 agreement
Distance	2cm - 5cm
Language/Input Method
Input	English, Pinyin, Handwriting input, support soft keypad
Language	Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc.
Physical Parameter	179mm * 74.5mm * 22.5mm (the thinnest) 49.5mm (the printing part)
Weight	<500g (Depends on device function configuration)
Display	5.5 inch IPS color display with resolution 720 * 1440
TP	Supports multi-touch
Battery capacity	Rechargeable polymer battery 7.6V 2750mAh (equal to 3.8V 5200mAh), removable Standby time >350 hours Working time > 12 hours Charging time 3-4H, Using standard power adapter and data cable
Expansion Card slot	Nano SIM card * 1 , TF card * 1, PSAM * 2 (optional)
Communication interface	Type-C USB * 1, OTG
Audio	Speaker (mono), Microphone, Earpiece
Keypad	Home key, Delete key, Back key,Confirm key
Side keys	Silicone keys: Power key, Volume +/- key, Scan key * 2
Sensors	Gravity sensor, Light sensor, Proximity sensor,Vibration motor
User Environment
Operating temperature	-20ºC - 55ºC
Storage temperature	-40ºC - 70ºC
Environment humidity	5%RH-95%RH (no condensation)
Drop specification	6 sides supports 1.2 meters drops and 30 times to the concrete within the operating temperature
Rolling test	0.5m rolling for 6 sides, can still work steadily
Sealing	IP54
Accessories
Standard	Adapter, Data cable, Protective film, Instruction manual

Company Profile







FAQ 1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;

---
