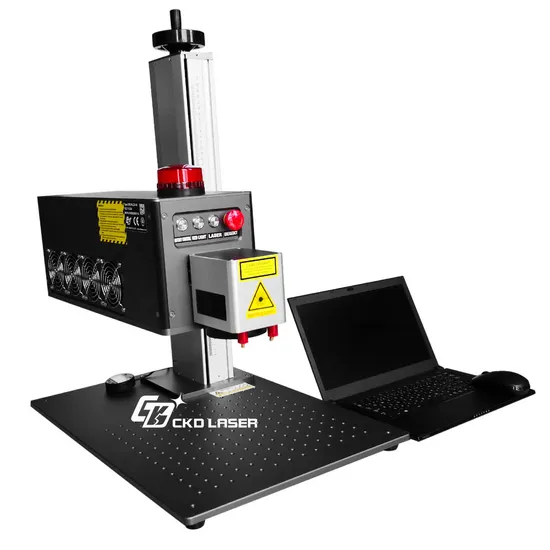

Innovative CO2 Laser Marking System with a Compact Form Factor and Integrated Flashing Light for User Safety

US$3,500.00-9,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CKD-PLCO-30/40/60/100, V22.11
Laser Visibility
Invisible
Applicable Material
Nonmetal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
CO2 Laser
Laser Classification
Gaseous Laser
Type
CO2 Laser Marking Machine
Marking Method
Scanning Marking
Average Lead Time
3-5 Work Days After Payment
Laser Source
30/40W
Marking Scope
Choosable: 100*100 mm or 200*200mm
Function
Marking, Engraving, Cutting
Material
Ceramics, PVC, Wood, Paper and Other Nonmetal
Computer
Optional
Air Purifier / Smoke Exhaustor
Optional
Transport Package
Wooden Box
Specification
CE passed, Europe/ Asia/ America Standard
Trademark
CKD LASER
Origin
Shenzhen, China
HS Code
8456110090
Production Capacity
200 Set/Month

Product Description

Irreplaceable advantages of CKD-PLCO V22.11: Flexibly match for multi-scene. Free from installation trouble. Small machine and can mark big material. This is a great portable laser marking machine, with extremely easy structure, never worry about complex installation, and free from trouble of maintenance, air-cooling and doesn't need extra water chiller.
It can mark or engrave almost non-metal, such as engraving logo or series numbers on wood, acrylic, cloth, leather, plastic, cotton, paper and so on. It's helpful for industries of wooden works, gifts, clothing, furniture, medicines, packaging and so on.
Focus reader (optional) can help new users to know focus right or off much obviously.
PLCO supports both vector and bit map marking, it can print a high-definition photo on wood, to keep as much detail as possible to make photo more vivid and exquisite.
Demo shows: logo marking on wood phone case, photo printing on wood, patten marking on leather, engraving of acrylic trophy (medal) and night lamp.
CKD-PLCO V22.11 built-in double focus tools, and set button on marking head to turn on or off them. This design not only delays the service life but also avoids interference of red-light for some high requirement or fine processes.
CKD-PLCO V22.11 can work for both small personal workshop and big factory, and can match huge production line to work. Because it can be flexibly and easily installed on any location.
The Z-axis column and position board can be removed, the cubic body is an independent machine that can be installed at any place, be matched with any equipment under multi-scene application.
Big travel distance makes this small machine can mark big material.
Travel distance of work distance: 9-57cm
One step to plug on computer, rotary, foot-switch and power.
Match the most popular marking software of EzCad2.
Computer: without
Marking software: with, EzCad2
Foot switch: with
Rotary: without
Power cable: with
USB cable to link computer: with
More optional parts:
Recommend one different size lens, laser protective goggle, X-Y table and rotary.
Application of those optional parts:
Lens: one more as standby or mark another size, the standard marking scope on machine is 110*110mm.
laser protective goggle: protect eyes from laser.
X-Y table: slightly change position of marking material, useful for small material.
Rotary: marking surround the column such as cup, bottle, or other cylinder material.
CONFIGURATION:
Parameters Unit Data Data
Type CKD-PLCO-30 CKD-PLCO-40
Power W 30 40
Laser CO2 laser
Laser Wavelength um 10.6
Marking scope (optional) mm 110*110/140*140 110*110/140*140/250*250
Marking Material Non-metal
Marking Software EzCad2
Service Life of Laser Source hrs 45000
Cooling Mode Air cooling
Operation Environment Temperature ÂșC 0-30
Total Power W 600 700
Voltage (optional before order) 220V,50Hz / 110V,60Hz
Packing (L*W*H) cm Z-axis: 76*26*26cm, 12kg
Main machine: 70*30*25cm, 18kg
Base board: 70*50*15: 7.5kg
Weight Kg 37.5

The bigger marking scope, the weaker laser energy. Smaller marking scope is for deeper engraving, bigger scope is for big logo marking.
