CE Approved Paper Cup Machine with CE/ISO Certification

US$14,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RD-LB120-3600A
Speed
40-60pcs/min
Required Paper
Double Side PE Coated Paper
Automation
Automatic
Logo Printing
Without Logo Printing
Certification
CE
Customized
Non-Customized
Condition
New
Automatic Grade
Automatic
Transport Package
Wooden Cases
Trademark
RUIDA
Origin
China
HS Code
84413090
Production Capacity
100set

Product Description

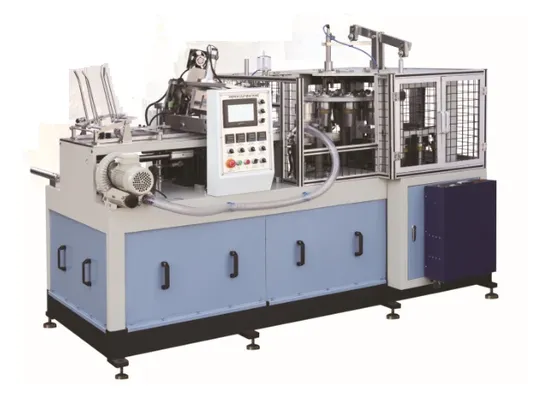

RD-LB120-3600A Paper cup forming machine is a kind of full automatic forming machine. It has functions of feeding the paper row by row automatically and the devoice to avoid the paper retreat (this makes paper feeding more precise), ultrasonic sealing, paper cylinder transferred by mechanical arm, oiling, bottom punching, bottom folding, preheating, bottom knurling, and cup stacking.
It has the invertor for automatic speed adjusted, and the bottom punching is adopted servo motor (when there is paper body, the bottom paper will be send, if not, the bottom paper will not send, this can save the paper, no waste).
The inner structure adopts vertical axis to drive the motor. And it is with automatic lubrication system to reduce the friction of each mechanical part, and no need to add the oil by manual.
The machine stops automatically if any problem which controlled by sensors we installed, so that the machine is well protected and becomes more durable.
We adopt separate cam drivers on the left and right of cup side sealing device, so the working status is quiet and stable, which is the top technology owned by us in China.
Main technical parameter:
Cup size 6-32oz
Paper thickness 180-300gsm paper sheet
speed 50-60 pcs/min
Electrical source 220-380v
Total power 6kw
Weight 2500kg
Overall dimensions 3000x1200x1580mm
