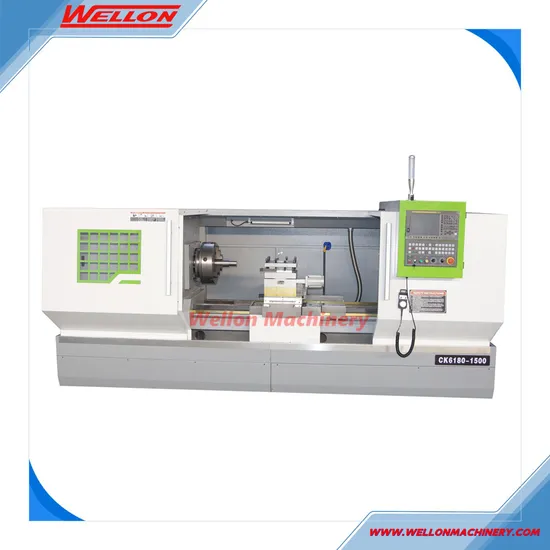

CNC Lathe Machine Ck6180 Heavy Duty Automatic Turning Lathe Machine Price

Product Description

Product Description
Products Description:
Performence Features:
This is CNC horizontal lathe is the widely used standard automated metal processing equipment at present, which is suitable for processing large size metal parts and components with complex shape such as shaft and disc; it will greatly improve the processing efficiency and reduce the labor intensity of the workers when it is used to process great mass of parts. This series of lathe is reliable in accuracy and stability and easy in operating and programming, it can undertake various turning works such as turning inner and outer cylindrical surface, so it is applied widely and is a kind of ideal metal processing equipment.
Technical parameter:

Model	Unit	CK6180
Max swing over bed	mm	800
Max swing over slide	mm	550
Distance between centers	mm	1500
Spindle bore	mm	82
Spindle taper	mm	MT6
Spindle speed	r/min	90-1200
3 jaw chuck diameter	mm	350 Manual type
X axis rapid moving speed	m/min	4
Z axis rapid moving speed	m/min	4
X axis travel	mm	420
Z axis travel	mm	900
Tail stock quill diameter	mm	100
Tail stock quill travel	mm	150
Quill taper		MT5
Guide way width	mm	400
Tool post shrank size	mm	25X25
Re-positioning accuracy	mm	0.005
Main motor power	kw	11
Coolant pump motor power	W	125
Machine width x Height x Length	mm	1710x1740x2800
Machine weight	kg	3200
Max Loading weight	kg	800

Standard:
Siemens 808D CNC system 4-position electrical turret
Manual 3 jaw chuck
Manual tail stock
Double pull door semi-enclosed protection
Optional:
CNC system:Fanuc,GSK etc
Hydraulic chuck
Hydraulic tail stock
Full closed cover Company Profile
