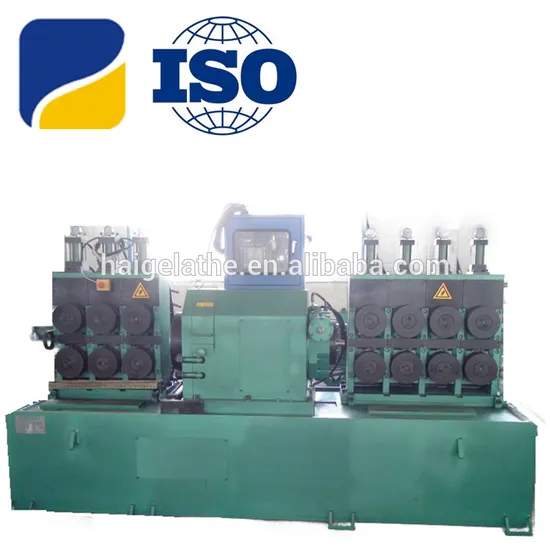

New Condition Round Bronze Bar Turning Machine

Product Description

automatic lathe peeling machine
Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.
The machine's features are as follows:
When processing over-length bar,centerless lathe has incomparable advantages.
Centerless Lathe is not only processing Bar,also Wire Rod.
Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.
High Precision,after peeling,diameter tolerance can reach ≤h9,surface roughness(Ra)≤6.3μm.
Our product is suitable for processing all kinds of metal materials, such as steel tubecore bar, titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, quality carbon steel, alloy structural steel, nonhardening and tempering steel, free-cutting steel, valve steel, gear steel, mold steel and all kinds of nonferrous metal, pipe etc.

Technical Parameters The raw material
Turning range (mm) Φ16~Φ62X2200~6000
Tensile strength σb (Mpa) ≤1100
Surface hardness HB320
Bending (mm/m) ≤1.50
Diameter tolerance according to GB 702-88 two groups
Circularity ≤ 50% of diameter tolerance
Surface roughness (Ra) ≤25 ~ 50m
The finished product
Diameter range (mm) Φ15 to Φ60
Unilateral cutting depth (mm) 0.35~1.50
Diameter tolerance ≤h10
Surface roughness (Ra) ≤6.3μm
Circularity (mm) ≤0.04
Turning speed (stepless speed regulation m/min) 1.0~8.0 (constant chip, high strength, high hardness, large diameter, large cutting quantity must be reduced)
Cutter head speed (continuously variable speed) (r/min) 430~1200
Main motor power (kW) 45
Feed motor power (kW) 4.0X2 (4 poles)
Main machine dimensions (m) 3.0X2.5X2.0
External dimension with auxiliary machine (m) 13.0X2.5X2.4
The host weight (t) is 5.0
Total installed capacity (kW) (ref) 55
Compressed air source (user's own) 0.5-0.8mpa, 1.8m3/min, 0.8m3 or more gas storage tank, with two oil-water separator and compressed air freezer dryer
Company introduction Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m².There are one hundred and forty staffs working in the factory.The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
Certification
Packaging & Shipping
FAQ 1.Are you manufacturer or trading company?
We are professional manufacturer and we have more than 10 years experience in this field.We have our own factory.
Besides,at the end of 2014,we was just estabilished a trading company.
2.How many employees are there in your factory?
Approximately 150 persons.
3.Do you have your own R&D team?How many design engineers do you have?
Yes,we have our own R&D team.More than 10 persons.
4.Which countries have your machines been exported to now?
Russia,South Korea,North KOrea,Pakistan,India,Vietnam,Taiwan,etc.
We regard our customer's satisfaction as our unremitting pursuit.

---
