Stainless Steel Grain Medicine Sugar Salt Food Chemical Hammer Crusher

Product Description

Stainless Steel Grain Medicine Sugar Salt Food Chemical Hammer Crusher
Application:
This stainless steel is multifunctional, which can grind the corn, grains, hot pepper,
Chili, coffee bean medicine into powder.The size of final product can be as tiny as 120 mesh.
Working Method:
The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials.The size of granules can be achieved by changing of the screen.The machine has the features of easy structure, solid, stable running and good efficiency.
The crushed material is discharged directly from the grinding chamber of the main frame.In addition, the whole machine is made of stainless steel, with smooth inside walls to avoid powder accumulation on the inside walls.Those harm aceutical, chemical and food stuff products from the machine are in accordance with national requirement, achieving GMP standard.
Specification:

Model	WSBX-20	WSBX-30	WSBX-40	WSBX-60
Capacity(kg/h)	30-150	50-300	80-800	120-1500
Speed of principal axis(r/min)	4500	3800	3400	2600
Size of input granules(mm)	< 6	< 10	< 12	< 15
Fineness of products (mesh)	12-120	12-120	12-120	12-120
Power(kw)	4	5.5	7.5	15
Weight(kg)	250	320	450	600
Overall size (L× W× H) (mm)	550× 600 × 1250	600× 750 × 1450	750× 900 × 1550	950× 1000 × 1850

Application of stainless steel crusher/electric herb grinder

Mainly used in pharmaceutical, chemical, food (example: ginger, chili, pepper, oil, wheat, soy, star anise, cinnamon, dried vegetables, grain) and other low hardness material crushing process, fineness adjusted between 30-150 mesh, with high yield, fine grain size, low noise, low energy consumption, easy maintenance, easy installation, etc., especially for oily, viscous, heat-sensitive, low hardness and other fibrous materials crushing process.

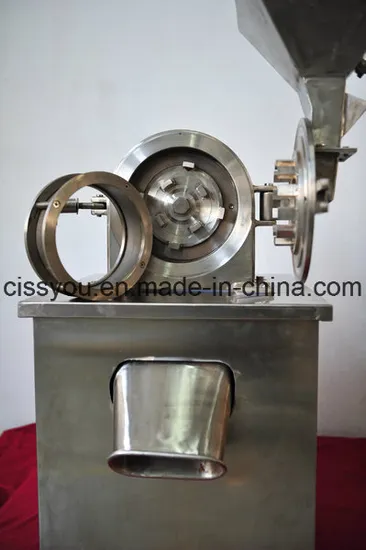

Structure and working principle of stainless steel crusher/electric herb grinder
1, the structure: It includes main cabinet, door, turbo, spindle, screen, pulleys and motors and other component parts.
2, Working principle:
When it works, the motor drive shaft and the turbine speed rotation. Ring on the turbo and the screen broken grinding blocks, grinding vice, when the material from the hopper into the machine chamber, the material in the rotation of the turbine air flow closely friction and impact strongly on the inside of the turbine blades and vanes the gap between the blocks and grinding grinding again. In the crushed material while inhaling a lot of air turbine, which has played a cooling airflow machines, grinding materials and fine material transfer effect. Depends on the fineness of grinding material properties of the material and the mesh size, and the throughput of the material and the air.
3, Bearing parts equipment with a special labyrinth seal, can effectively prevent dust from entering the bearing cavity, thus extending the service life of the bearing. Machine equipped with a silicone rubber door seals, no dust leak and contaminate the operating environment.
Remarks:
I.Delivery time:20 days after receiving clients' prepayment.
II.Payment term:50% as prepayment by T/T, after seeing the copy of the B/L sent by fax, the balance of 50% should be paid.
III.Valid time:This quotation is valid for one month.
IV .Quality Guarantee Terms:
Quality guarantee term is for one year.Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
V.Contact details:
Contact Miss Susan
HP:0086-15838007835

---
