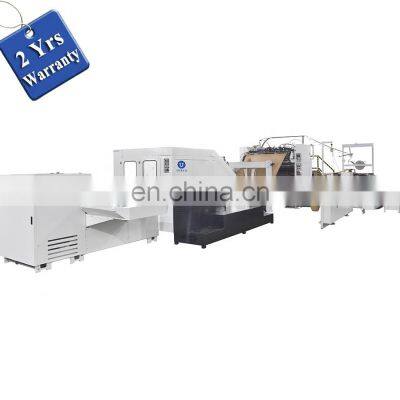

HD330T Fully Automatic Square Bottom Shopping Kraft Paper Bag Making Machine With Twisted Handle Inline priceVideosVideo demonstration only for referenceVideo: /watch?v=G9N5dlKveTIProduct Description Description: Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts Japan imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers. Features: 1.Use Taiwan WEINVIEW touch screen human-computer interface, making the machine easy to operate and control.2. Adopt Janpan original Mitsubishi PC control, integrated with optical fiber. Thus ensure stable and high speed running.3.Adopt Janpan original Mitsubishiservo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.4. Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.5. Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time. Parameters: ModelHD330THD450TCutting Length 270-530mm270-530mmCutting length(Ful)270-430mm270-430mmBag width150-330mm150-330mmBag width(Ful)220-330mm220-330mmBag Length225-470225-470Bag Length(Ful)225-370mm225-370mmBottom width60-180mm60-180mmPaper Thickness60-160gsm60-160gsmPaper Thickness(Ful)60-160gsm60-160gsmPaper roll width440-1050mm440-1050mmPaper roll width(Ful)585-1050mm585-1050mmRoll paper diameter1200mm1200mmPaper core76mm76mmHandle Height100mm100mmPatch length152.4mm152.4mmpatch width40-50mm40-50mmHandle distance75mm75mmRope diameter3-5mm3-5mmPatch paper roll width80-100mm80-100mmpatch paper roll diameter1200mm1200mmpatch paper thickness100-135gsm100-135gsmMachine Speed30-200bags/min30-200bags/minproduction speed for bags without handles30-160bags/min30-160bags/minproduction speed for bags with handles30-120bags/min30-120bags/minBottom folding type Cutting knifeSawtooth cuttingSawtooth cuttingPower Supply380V 3Phase35KW380V 3Phase35KWMachine weight12000kg12000kgMachine size14000x5800x2400mm14000x5800x2400mm Detailed Images Service Team Pre-sale Service After-sale Service A: Inquiry and consulting support A: English manuel and video instruction B: Sample testing support. B: Your technians can get trained in my factoryC: Invoice and Contract confirmation. C: Engineers available for overseas if necessary Certifications FAQ1.Q: What information should i let you know if i want to get a quotation?A: What is your Max and Min product size in mm?B: What is your paper thickness in GSM?C: Some photos of your finished products2.Q: Are you a manufacturer?A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter. 3.Q: What about the payment term?A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..4.Q: What is the warranty?A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)5.Q: What is your aftersale service?A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..6.Q:What is the delivery time?A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.Packaging & ShippingWooden Case Loading and Transport Contact UsYOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE. Mobile/Whatsapp/Wechat: +86-18258286679 Email: utecs@ , utecsinter@ , danielsuer@ Skype: danielsuerWeb:
>>
