Conference Hall Music Hall Ceiling Speaker

US$30.00-200.00 1 Piece (MOQ)

Basic Info.

Model NO.
MQ-6C
Player Type
Without Player
Speaker System Audio Output Mode
Surround Sound
Finish
Aluminium
Control
Wired
Sound Channel
Depends on Installing Way
FM
Without FM
HDMI Quantity
HD7.1
Frequency Response
124Hz~20kHz
Sensitivity(1W/1m)
91±2dB
Rated Power(AES)
60W/16Ω
Transport Package
Carton Box
Specification
220x194mm
Trademark
RF
Origin
China
HS Code
8518220000
Production Capacity
2000PCS/Month

Product Description

Product name:Coaxial In-Ceiling Speaker
Specification
Frequency response 126Hz-20kHz
Sensitivity(1W/1M) 90±2dB
Rated Power(AES) 60W/16Ω
Input mode 100V(60W@167Ω,30W@333Ω,15W@667Ω)
70V(60W@167Ω,30W@333Ω,5W@667Ω,7.5W@667Ω)
LF Driver 6.5"
HF Driver 20mm horn voice coil
Diameter Out Circle 220mm
Hole Depth 194mm
Net Weight 3.6kg

Features
1.MQ series are coaxial two-way ceiling speakers ,MQ-8C uses 8"LF driver ,MQ-6C uses 6.5"LF driver ,with silk diaphragm for HF driver ,the sound is more softer and smoother;Coaxial sound source from one same point , sound reduction is more accurate and natural.
2.Voltage input and electric resistance are optional, voltage input (100V and 70V) amd electric reistance (16ohms) are available for different occasions. Installation is flexible with only hole size of the ceiling should be considered.
Application

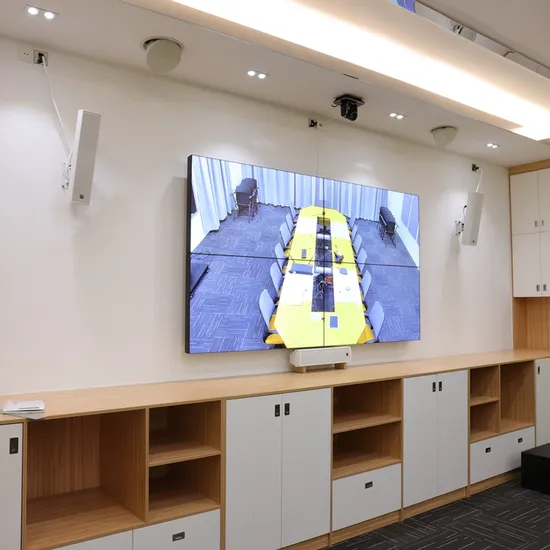

Small to medium conference hall,Auditorium,Banquet hall,Music hall,Multi-function hall,Aux amplifying system.
