China 1ton Mini Digger Crawler Excavator 2ton Compact Excavator Earthmoving Machinery 3ton Backhoe Digger Compact Digging Machines Construction Excavator 5ton

Product Description

Product Description
Introductions Of CT10 Road Crushing Mini Excavator Prices 1600kg 1.6 Ton Excavators Small Digger With CE Efficient and reliable:
Equipped with Japanese Yanmar engine, which complies with Euro V and EPA4 emission standards, ensuring the reliability of the machine under harsh working conditions;
Standard high-precision air filter and two-stage diesel filtration ensure reliable engine operation.
Sensitive and stable:
Equipped with hydraulic components specially supplied by Carter Heavy Industries, the action control is more sensitive, the system performance is more stable and the reliability is higher.
1,Convenient and flexible:
2,,The chassis is retractable and the foldable dozer blade allows flexible working width; the working device can be deflected and is suitable for various side and corner places; hydraulic pilot control makes operation more flexible; hydraulic quick-change pipelines facilitate the installation of various attachments .
3, The flip-up integral rear hood allows daily maintenance to be performed by opening the hood.
safe and comfort:
4,The whole machine complies with CE certification requirements. The driver's cab and driver's shed are designed to be anti-tip and anti-falling. It has obtained TOPS and FOPS certification requirements and is safer; the cab model is equipped with a heater to better improve the comfort of winter work. sex.

Small excavators are widely used in greenhouse orchards, mountain ditches, rural renovation, indoor and outdoor, construction projects, road finishing and other working conditions.
1. Preheating of the hydraulic device. When the temperature of the hydraulic oil is low, rapid operation will cause damage to the hydraulic device.
1.1. The small excavator engine runs at a medium speed, operates the bucket, and preheats;
1.2. Jack up the machine to rotate the crawler, and preheat the left and right travel motors respectively;
1.3. Then, raise the speed of the engine to the highest, and make the bucket and stick work continuously for 5 minutes;
At the same time, the safety of the surrounding environment should be fully paid attention to during the warm-up operation. When the temperature is low, the reaction of people will be relatively slow, so it is necessary to prevent people and objects around them during warm-up.
Second, the preheating of the small excavator engine, the first step in getting on the car, the engine should be started and run at low speed for 5 minutes. At the same time, the following inspections should be carried out during the warm-up process of the small excavator engine:
2.11. Whether the oil warning light is off;
2.2. Whether there is oil leakage or water leakage;
2.3. Whether the sound of the engine and the color of the exhaust are normal;
2.4. Whether the charging indicator light is off;
2.5. Whether each part of the machine is abnormal.

Product Parameters

Engine					Travel System
Model		KOOP( KD192F-1)			Travel motors				SMT310
Type		Direct injection, air cooled, natural intake,,			Support roller quantities				2×2
					Carrier roller quantities				0
No.engine cylinder		1			Travel speed				2.2(km/h)
Bore and stroke/		92x75			Drawbar pulling force				8.3KN
Displacement		0.499			Gradeability				58%(300)
Power output		7kw/3000rpm			Rubber track width				180mm
Max. Torque		27N.m/2200rpm			Rubber track Thickness				40mm
Hydraulic System
Pump		2ZGPA0D6S0L0
Type		Gear pump
Max. discharge flow		18 (L/min)
Main control valves		DL80
Oil cooler		Air cooled type
Swing System					Refilling Capacity & lubrication &
Swing motor		OMR200			Fuel tank			5.5L
Swing motor type		Gerotor motor			Engine oil			1.2L
Swing speed		13 r/min			Hydraulic oil tank			14.5L Oil Tank Level
								21.5L Hydraulic System
Bucket
Bucket capacity					0.023m3
Bucket width					400 mm
Working ranges
Boom length			1500m
A	Max. digging height		2600mm
B	Max. dumping height		1830mm
C	Max. digging depth		1715mm
D	Max. vertical digging depth		1590mm
E	Max. digging radius		3065mm
F	Max. digging radius at ground level ()		2960mm
G	Min swing radius of work equipment		1480mm
H	Swing radius at tail		800mm
Digging Force
Arm length			820mm
A	Bucket digging force		7.2 KN
B	Arm digging force		4.6 KN
Overall Dimensions
A	Overall length		2840mm			I	Track grounding length			900mm
B	Ground contact length(Transportation)		2611mm			J	Track length			1233mm
C	Overall height(to top of boom)		1130mm			K	Track gauge			660mm
D	Overall width		880mm			L	Track width			840mm
E	Overall height(to top of cab)		2220mm			M	Track Shoe width			180mm
F	Counterweight ground clearance		385mm			O	Counterweight height			1025mm
G	Min. Ground clearance		132mm
Operating Weight and Ground Pressure
Operating weight includes basic machine()
Operating weight				970kg
Ground pressure				20 KPa

Detailed Photos
Attached Tools for Mini Excavator Breaking Hammer When you need to break up the asphalt or concrete pavement, or some other hard surfaces, the excavator breaking hammer could help to finish the work with the great impact of energy. Drilling Auger Powered by hydraulic circuits, and equipped with a spiral blade, the drilling auger has the ability to reach over objects and drill deep holes. Augers come in different specifications and sizes for various digging conditions and terrains such as landscaping and construction for the consistent holes. Buckets Buckets are the most standard attachments seen on excavators. Besides the common size installed on excavators, there has also some other options for a different purposes. The width could be200mm,250mm,450mm,500mm,600mm,1000mm, etc. with or without bucket teeth.Besides, the tilt bucket is also available for special works. Quick Hitch A quick hitch is also called a quick coupler, driven by mechanical or hydraulic power. Couplers allow you to quickly switch between tools and attachments without a crew when you need multi-tools on the excavator. They can help maximize the versatility of your excavator and boost your team's productivity Ripper Rippers are another excellent attachment for tearing through tough materials. These durable tools can break up frozen ground or demolish structures

MINI EXCAVATOR Features:

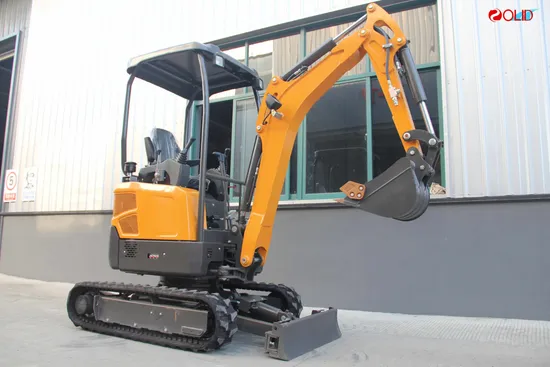

The CT10 mini excavator is characterized by its compact and flexible design, powerful performance, and reliable functionality. It finds extensive applications in the fields of agriculture, municipal construction, and more, including vegetable greenhouses, orchards, nurseries, landscaping, and indoor renovations.
Key Features:
1. Equipped with an engine that complies with Euro V emission standards, delivering strong power, stable performance, and smooth, low-vibration operation.
2. Utilizes hydraulic components exclusively provided by Cater Heavy Industries for stable operation and high reliability.
3. Comes with an adjustable working device, allowing for easy handling of construction tasks in tight and confined spaces.
4. User-friendly design for control and switch mechanisms, making operation easy and enhancing working comfort.
5. Maintenance is made convenient with a rear-hinged overall machine cover, facilitating servicing and inspections.
6. A variety of attachments are available, including rotary drilling equipment, hydraulic hammers, loosening tools, digging buckets, screening buckets, loading buckets, and grapples, adding extra value to the machine.

Rated Products
Packaging & Shipping
Successed Project
Company Profile
SOLID was founded in 2008 year. Since then, SOLID has stood at the forefront of the Chinese construction machinery industry and developed into one of the domestic industry's largest, most influential, and most competitive enterprise groups with the most complete product varieties and series.SOLID is ranked 65th in the list of China's Top 500 Companies, 44th in the list of China's Top 100 Manufacturing Enterprises, and 2ND in the list of China's Top 100 Machinery Manufacturers. SOLID is dedicated to its core value of "Taking Great Responsibilities, Acting With Great Morals, and Making Great Achievements" and its corporate spirit of being "Rigorous, Practical, Progressive, and Creative" in order to keep moving towards its ultimate goal of becoming a leading world-class enterprise capable of creating real value.SOLID mainly supply Hoisting machinery, MiningMachinery Machinery, , Excavators, Loaders, Road Machinery, Piling Machinery, Non-Excavation Machinery, Concrete Machinery, Special Vehicle, Aerial Working Equipment, Sanitation Machinery, Fire-fighting Machinery, Tunnel Machinery, Resource Exploration Machinery, Port Machinery and so onSOLID products, including mechanical vibratory road rolls, excavators and motor graders, have successfully participated in the construction of the largest railway project in the Philippines, thanks to their outstanding performance and comprehensive after-sales service. These three types of machines have contributed to the project's progress in an organized manner. During our on-site visits to customers, they expressed that SOLID products are reliable in quality, and the compact excavator equipped with a hydraulic breaker delivers excellent impact force. This effectively ensures the project's advancement and contributes to its completion within the expected timeframe, providing additional momentum to the development of local livelihood projects.

---
