Professional Manufacturer Compoud Rubber Two Roll Roller Rubber Mixing Mill

Product Description

Professional Manufacturer Compoud Rubber Two Roll Roller Rubber Mixing Mill

Application :
The mixing mill is used for rubber plasticating, mixing, warming and sheeting.
Product Details Description:
Two Roll Mixing Mill With Stock Blender Machine can save labor, increase production efficiency.
Two roll mixing mill machine is mainly used in rubber & plastic products factory: natural rubber plasticating, raw rubber and compound mixing, as well as rubber warm-up and rubber sheeting.
As a open type two roller mixing mill, it consists of seat, frame, roller, driving gear, lubricating device, cooling and heating device, adjusting device of roller nip, safety brake, motor and reducer, etc.
The roller, with smooth surface after polished,is made of chilled cast iron. Steam and cooling water can be inputted in the empty roller to adjust temperature of roller. Two rollers rotate reversely with different speed, so that rubber materials are drawn into the gap of the two rollers for processing.
Configurations of opened mixing mill:
1)Gap Adjustment Mode:Manual or Electrical (by motor)
2)Lubricating Method:Manual or Auto;Grease or Thin oil
3)Emergency stop device:Pull Rod and Emergency button
4)Roller bearings: Nylon Bush or Copper Sleeve or Ball Bearing Bush
5)Reducer(gear box) type:ZQ type reducer or hard-teeth(hardened) reducer or planetary reducer.
You can choose above suitable structures according to your conditions.

Technical parameter:

Technical parameter type	XK-160	XK-230	XK-250	XK-400	XK-450	XK-560	XK-550B	XK-660
working diameter of rolls(mm)	160	230	250	400	450	560/510	550	660
working length of rolls(mm)	320	600	620	1000	1200	1530	1500	2130
front roll surface speed(m/min)	8.95	10.21	14.1	18.65	24.26	27.72	27.94	28.6
friction ratio	1:1.35	1:1.19	1:1.17	1:1.27	1:1.27	1:1.2	1:1.22	1:1.24
max.nip(mm)	4.5	7	8	10	15	15	15	15
capacity per.batch(kg)	1~2	6~10	8~15	18~35	25~50	35~50	50~60	165
motor power(kw)	5.5	15	18.5	37	55	90	110	245
overall dimension:LxWxH(mm)	1380x860x1320	2800x1200x1120	3400x1500x1800	4350x1850x1785	5200x2380x1840	5845x2284x1978	5870x2475x2045	7465x3662x2080
weight(kg)	1280	2500	3500	7600	14000	23000	27000	49000

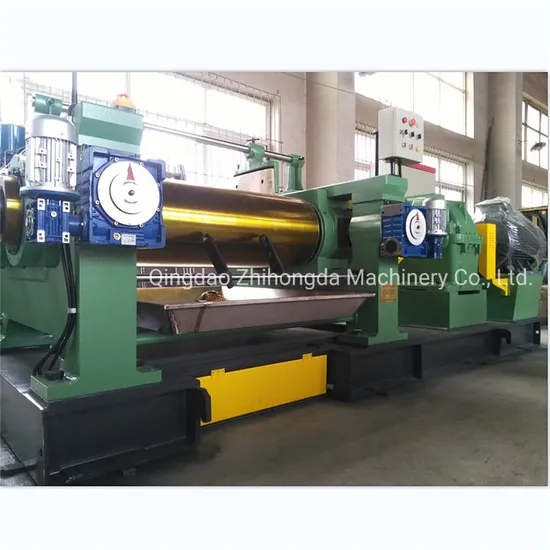

Pictures of rubber mixing mill:
Advantages of two roll mixing mill:
1.2sets double-row cylindrical roller bearings for each bearing house, for all the 4
bearing houses, there are altogether 8pcs double-row cylindrical roller bearings
2.1set more thrust bearing outside the roller bearings, there are altogether 4pcs more thrust bearings for each mill
3.anneal heating treatment of the bearing houses
4.anneal heating treatment of the machine frames
FAQ:
1 Are you manufacturer?
Yes,we are manufacturer with 15 years rich experience in China.
2 Can you design new machinery for us?
Yes,we have a professional technology engineers that we can make new machinery according to your requirements.
3 What's your payment term?
40% deposit by T/T,the balance paid off by T/T before shipping.
4 Are you near to Qingdao airport?
Yes,only 1.5 hours to our factory.
5 Do you have any certificate of your products?
Yes, we have CE, SGS etc.
Our contact:
If our products win your interest, please send us inquiries and we will provide detailed information to you. We can also make machines according to your request.
Qingdao Zhihongda Machinery Co.,Ltd located in Qingdao City.You can fly to Qingdao airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.
Thank you for your attention!

---
