China Manufacturer Customized Simple Air Source Swimming Pool Chiller Cooling Heating Heat Pump Controller Control Board PCBA

Product Description

Product Description CC305-2 Simple swimming pool heat pump controller pcba control board
Designed for: swimming pool heat pump machine;working modes: Cooling mode, heating mode, auto modeSingle compressor control , strongly system protection , EMC certificate.
Our heat pump control board are suitable for home and commercial hot water heater machines, pool machines, air-conditioning cooling and heating, chiller,and so on. Different application may need different technical data, please send us an inquiry with specific requirements, we will contact you immediately. The biggest advantage of ELECHICO is our ability to customize products for our customers to meet their diverse requirements. Because we have experience in R&D and manufacture of heat pump controller for more than 19 years. Our chief engineer had 20 years thermostat developing experience. Therfore, we are mainly exporting OEM/ODM services.
Company profile Founded in Foshan, China in 2003, Guangdong Chico Electronic Inc. is an advanced technology manufacturer and specializes in solution for intelligent control system in multiple industries.We operate two quality certified factories in both Foshan and Heyuan,China and have introduced a series of advanced equipment including automated AOI machine, SMT machine, automated assembly machine, FCT machine and so on.
* One-stop service from designing, manufacturing and testing.
* The competitive quality, the moderate price and the promptest delivery.
* A talented team of 60 experienced engineers continually raises the bar for the future, dedicating millions of RMB annually to research and development.
* Committed to improving product quality.Our operation is ISO 9001:2000-certified and product are CE- and RoHS-marked.
Over the years, our technology has evolved and our company has grown, but our goal remains the same that is"quality based, technology leaded and customers centered". We would like to creat a beautiful electronic industry with you in the future
Product Parameters

Measuring range		-30°C~99°C
Controlling range		8°C~60°C;
Accuracy		-30°C~50°C,±1°C±0.5dig; others, ±2°C±0.5dig
Mounting size		150×95×35mm
Power supply		220±10%(VAC), 50/60Hz
Power consumption		<12W
Storage temperature-		-25°C~50°C
Senor type		NTC(5KΩ/25°C,B value 3470K)
Relay output capacity	Compressor	20A/250VAC
	Electrical heater	20A/250VAC
	Others	5A/250VAC

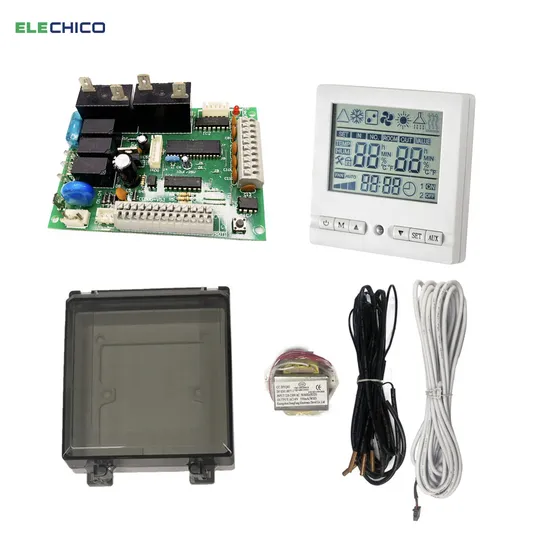

Product list		Mainboard (1pcs)
		LCD display(1pcs)
		Connect wire(1pcs)
		Transformer(1pcs)
		Temp. sensor(6pcs)

Product Features

1	With LCD display, quick parameter setting, easy operation
2	Intelligent defrost control mode, more stable and energy saving
3	Power off memory function
4	EEV control function
5	Three working modes: Refrigeration mode, heating mode,constant temperature mode
6	Five way control output	Compressor	Cycle water pump	Fan motor
		4-way-valve	Electrical heater	-
7	Six way sensor input:	Inlet water temperature sensor	Outlet water temperature sensor	Climate temperature sensor
		Evaporator temperature sensor	Suction temperature sensor	Condenser temperature sensor
8	Six way switch input:	Compressor high pressure switch	Compressor low pressure switch	Water flow switch
		Emergency ON/OFF switch	Mode switch	Phase protecting switch

Wiring Diagram
Company Profile
FAQ 1. Q: What is delivery time?A: Within 15 working days for order less than 100pcs. Other Order Quantity can be delivered within 25-35 days.2. Q: What is warranty of products?A: All products are with 1 year guarantee.3. Q: Does your company accept custom made in OEM/ODM mode?A: Yes, we have a strong R&D team that can undertake OEM & ODM service.4. Q: How do you control your product quality?A: Firstly, our products are strictly in accordance with the ISO quality and CE system requirement. Secondly, each production procedure is designated by a particular engineer. Thirdly, we have a professional QC team.5. Q: Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.

---
