Product Description
Product Description

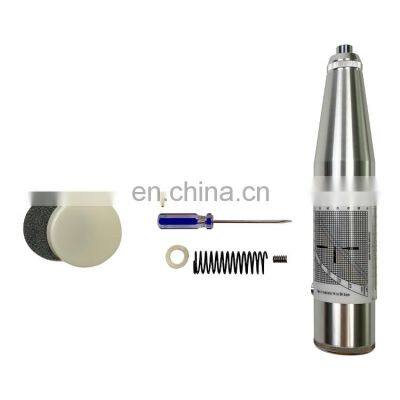

ZC3-A concrete rebound hammer
Usage Overview
ZC3-A concrete rebound hammer is applied to test the compressive strength of hardend concrete in building structure.
Standard:JGJ/T23-2011; GB /T9138-1988; JJG817-93; ASTM C 805; BS 1881:202; NF P18-417; DIN 1048; UNI 9189
Product name
| ZC3-A Concrete Test Hammer
|
Standard Impact energy
| 2.207J
|
Testing Range
| 10~60Mpa
|
Stroke of rebound hammer
| 75±0.3mm
|
Average rebound value
| 80±2
|
The static friction of pointer slider
| 0.65N±0.15N
|
Sphere radius of rebound pole SR
| 25±1mm
|
Working Humidity
| ≤90%RH
|
Working Temperature
| -10℃~+50℃
|
Size
| 195x140x45mm
|
Weight
| 2.1KG
|
Detailed Images
1) Center rod is made from imported material, high accuracy and durable resistance.
2) The shell is made from high Aluminum or high polymer material in order to perfect protect instrument from damage and extend use life.
3) Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate.
Unpacking display
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
Our Advantages
Installation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated.
our customer
Company Profile
Cangzhou Lovely Technology Co.,Ltd
` Cangzhou Lovely Technology Co.,Ltd. is a growing company with over 12 years of experience in China, is the leading manufacturer and supplier of testing equipment used for evaluating construction and civil engineering materials. We design and manufacture all machines and accessories either by our self or in close cooperation with long-term partners.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
· All our products are made in China .Excellent quality with competitive price
FAQ
Q1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
