Welcome to visit

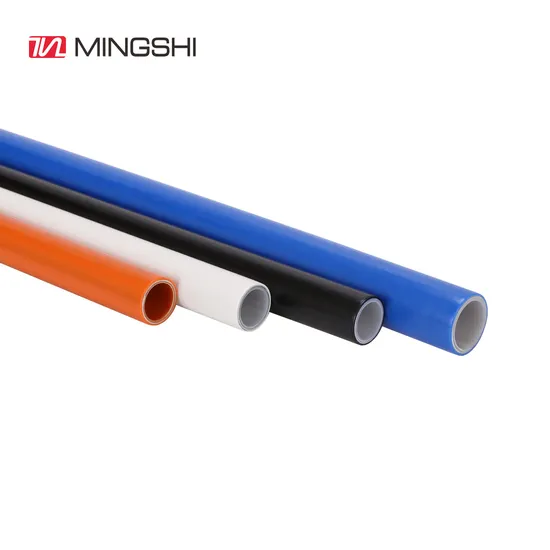

Wras Certificated Pex-Al-Pex Multilayer Pipe

US$0.30
10,000-19,999 Meters
US$2.30
20,000+ Meters

Basic Info.

Model NO.
16mm-63mm
Installation and Connection
Clamping Type Installation
Technology of Plastic Composite Pipe
Internal and External Coating
Aluminium Plastic Compound Pipe Use
Water Distribution Pipe in Building
Aluminium Plastic Compound Pipe Material
Crosslinked Polyethylene Aluminum Composite Pipe
Place of Origin
Zhejiang China (Mainland)
Brand Name
Mingshi
Length
200m, 150m, 100m, 50m
Thickness
2.0mm~3.5mm
Color
White, Red, Yellow, Orange, Green, Black, etc
Connection
Butt Welding, Overlapped
Transport Package
Knitting Bags, Cartons
Specification
ACS, AENOR, SKZ, WATERMARK, SABS, 12, 15, 16, 18
Trademark
MSP/MINGSHI
Origin
Zhejiang
HS Code
391739000
Production Capacity
50000m/Days

Product Description



Essential details
Place of Origin: Zhejiang,China Material: Pex
Specification: 16-63MM Length: 25/50/100/200/300/500 or OEM
Thickness: 2.0, 2.5, 3.0, 4.0, 4.5, 6.0 Standard: AENOR,SKZ,WRAS,WATERMARK
Processing Service: Cutting Product name: Pex-Al-Pex pipe
Application: Gas system,Water system, Under floor heating. Type: Plastic Building Material
Raw Material: Pex, Aluminum Colors: White,Red,Blue,Orange,Red or OEM
Logo: Support custom logo Features: Corrosion Resistant,fire resistant,high pressure
MOQ: 10000m Shape: Round
Advantage: Flexible,easy to install
Supply Ability
Supply Ability: 3000000 Meters per month
Packing&Delivery
Packing Details: With craft paper, then plastic film outside/Plastic bag
Port: Ningbo or Shanghai
International Standards
1 EN ISO 21003 Multilayer piping systems for hot and cold water installations inside buildings
2 AS 4176.2 & 3 Multilayer piping systems for hot and cold water plumbing applications- PIPES & FITTINGS
3 ISO17484-2:2009 Multilayer Plastics piping systems for indoor gas installations
International Certificates
1 AENOR refers to EN ISO 21003,UNE-EN ISO 53007
2 QB refers to EN ISO 21003
3 ACS refers to XP P41-250
4 Watermark refers to AS 4176.2 & 3
5 WRAS refers to Regulators' Specification
6 ISO 9001:2015 Quality management system
Size&Tolerance
Nominal size(D x e) 14×2.0 16×2.0 18×2.0 20×2.0 25×2.5 32×3.0 40x4.0 50x4.5 63x6.0
Outside diameter (mm) 14 16 18 20 25 32 40 50 63
Tolerance of Outer diameter (mm) Min 14 16 18 20 25 32 40 50 60.6
Max 14.3 16.3 18.3 20.3 25.3 32.3 40.4 50.5 63
Inside diameter(mm) 10 12 14 16 20 26 32 41 51
Tolerance of Inner diameter (mm) Min 9.9 11.9 13.9 15.9 19.9 25.9 30.9 39.4 49.3
Max 10.2 12.2 14.2 16.2 20.2 26.2 31.9 40.8 50.8
Pipe thickness (mm) 2 2 2 2 2.5 3 4 4.5 6
Tolerance of pipe thickness (mm) Min 2 2 2 2 2.4 2.9 4 4.5 6
Max 2.25 2.25 2.25 2.25 2.7 3.2 4.6 5.2 6.8
