750 Ton Plastic Parts Making Machine

Product Description

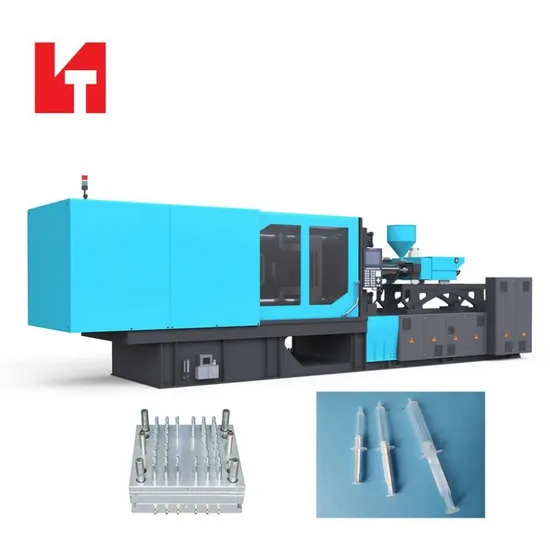

750 Ton Plastic Injection Molding Machine
State-of-the-Art Plastic Injection Molding Machine This advanced equipment consists of a plasticizing system, an injection system, a clamping system, and a transmission system, ensuring top-notch performance.
For many years, we have been pioneering die-casting innovations and integrating them into our injection molding machines. Our expertise spans mechanical, hydraulic, and electric control systems, resulting in comprehensive enhancements. This perfect synergy achieves dynamic pressure casting with unparalleled speed.
To boost the stability of syringe production, we have specially incorporated an infrared heating coil into our standard injection molding machines. Moreover, we highly recommend integrating a servo motor system . Although adding a servo motor increases the initial cost of the molding machine, its energy-saving benefits make it a more economical choice for long-term production. Thus, the industry is increasingly adopting servo motor systems.

Item	Unit	NT580				NT630				NT750				NT900			NT1180
SCREW DIAMETER	mm	75	80	85	90	90	95	100	105	90	95	105	110	95	100	105	105	115	125	135
SCREW L/D RATIO	L/D	22.7	21.3	20	19	22	21	20	19	23	22	20	19	22	21	20	23.8	21.7	20	18.5
INJECTION STROKE	mm	390	390	390	390	400	400	400	400	460	460	460	460	470	470	470	555	555	555	555
INJECTION SPEED	Mm/sec	88	88	88	88	80	80	80	80	81	81	81	81	84	84	84	65	65	65	65
SHOT VOLUME(THEORETICAL)	CM3	1723	1960	2213	2481	2544	2835	3141	3463	2926	3260	3983	4371	3331	3691	4069	4805	5764	6810	7943
INJECTION WEIGHT(PS)	g	1568	1783	2013	2257	2315	2579	2858	3151	2662	2966	3624	3977	3031	3358	3702	4372	5245	6197	7228
INJECTION PRESSURE	Mpa	186	164	145	129	180	162	146	132	195	175	143	131	189	171	155	207	173	146	125
INJECTION RATE	cm3/sec	388	442	499	560	508	567	628	692	515	574	701	769	595	659	727	526	675	797	930
SCREW SPEED	rpm	136				116				109				120			98
CLAMP FORCE	Kn	5800				6300				7500				9000			11800
OPEN STROKE	mm	850				905				1000				1100			1180
SPACE BETWEEN TIE BARS	mm×mm	860*860				925*875				1020*970				1250*1085			1180*1100
MAX.MOULD HEIGHT	mm	830				900				960				1100			1250
MIN.MOULD HEIGHT	mm	330				330				400				500			500
EJECTOR STROKE	mm	226				295				340				335			325
EJECTOR FORCE	Kn	150				150				210				216			245
EJECTOR NUMBER	N	13				21				17				17			21
MAX.PUMP PRESSURE	Mpa	16				16				16				16			16
SEVRO DRIVE POWER	Kw	55				45+30				45+37				45+45			55+37
HEATING POWER	Kw	33.5				42.8				46				48.5			68.5
MACHINE DIMENSION(L*W*H)	m×m×m	8.6*2.3*2.6				10.2*2.2*2.7				11*2.4*3.2				11.3*2.65*3.4			12.5*2.65*3.5
MACHINE WEIGHT(ESTIMATE)	T	21				30				35				40			54

ADVANTAGES
1. Clamping Unit Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite-Element Analysis; High-speed clamping is stable while low-pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose.
2. Injection Uni Double-cylinder balance injection system; Shot weight is precisely controlled by transducer; Using a hydraulic motor to carry out variable speed.
3. Hydraulic Unit Domestic high-tech divided hydraulic system; Hydraulic safety device; and Imported high-quality hydraulic components are applied.
4. Electric Unit Special controller for plastic injection molding machine; All the main components are imported from famous companies, for example, TE(France), Gefran(Italy), etc.

Q: Are you a manufacturer or trading company? A: We are a manufacturer with decades of experience, located in Zhejiang province. Q: What is the product range? A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc. Q: Where is your main selling market? A: We have business domestically, in the USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes, we will arrange our skilled engineers for field installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have the source for molds and spare parts? A: Yes, we can offer competitive quality and reasonable prices. Customized as required. Q: What is the standard of the package? A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.

---
