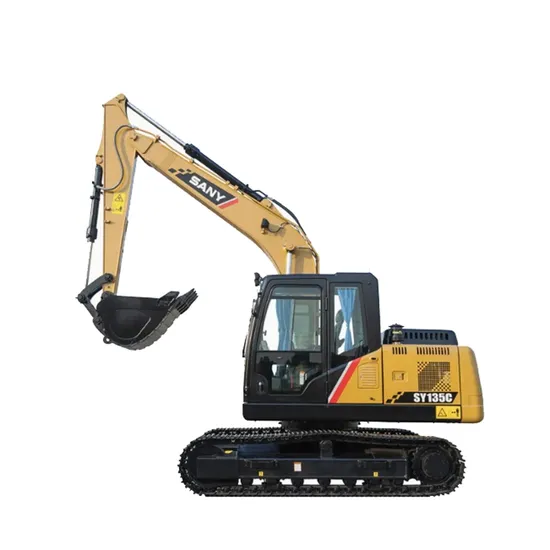

Premium Sy135c Crawler Excavator Available for Global Shipping

Product Description

Product Description
Main Application and Features of SY135C Excavator:
1. Wetland Restoration: Ideal for restoring marshy areas, removing invasive species, and reshaping terrain.
2. Dredging Operations: Efficiently clears sediment from rivers, lakes, and ponds, reaching inaccessible areas.
3. Aquaculture Construction: Essential for building ponds, creating access channels, and installing aquaculture infrastructure.
4. Flood Control: Crucial in managing water levels, clearing debris, and reinforcing embankments during flood events.
5. Environmental Remediation: Safely removes contaminated soil and debris from water bodies in polluted sites.
6. High Efficiency and Low Consumption Engine: The working mode can be changed on the monitor, which can maximize the operating efficiency and reduce the fuel consumption.
7. Large-capacity Fuel Tank with Anti-rust Treatment: The large capacity of fuel tank reduces the frequency of refueling. The interior of the fuel tank has been well treated againstrusting. No rusting will occur even if the tank is soaked in oil containing water and phosphoric acid and other chemicals for a long period of time.
8.Safe Cab: The cab is punch-formed made of thick high-strength steel sheet, in addition to toughened glass windows and seat belt, so the safety of operator is well ensured in the cab.

Model	Value
Operating weight	28000kg
Boom and stick length	11000mm
Bucket capacity	0.4m³
Max digging radius	11735mm
Max digging height	11940mm
Max digging depth	10005mm
Max unloading height	9841mm
Min turning radius	2500mm
Driving speed	2.3km/h
Swing speed	12r/min
Gradeability	49%
Ground specific pressure	22.8kpa
Bucket digging force	77kn
Stick digging force	48.8kn
Rated power/speed	73/2000Kw/rpm
Max torque/speed	365/1600Nm/rpm
Displacement	2.999L
Main pump	2 Piston pumps
Main pump rated flow	247L/min
Walking system pressure	35MPa
Swing system pressure	26MPa
Fuel tank volume	240L
Hydraulic oil tank volume	150L
Engine oil capacity	15L
Overall machine length	10500mm
Overall machine width without side pontoons	4000mm
Overall machine height(to boom)	3700mm
Turntable width	2450mm
Single pontoon length	7000mm
Single pontoon width	1250mm
Single pontoon height	1600mm
Pontoon overall width	4000mm
Pontoon landed length	2800mm
Track gauge	2560mm
Distance between sprocket and idler	6110mm
Counterweight ground clearance	1784mm
Min ground clearance	1047mm
Max turning radius of the tail	1910mm
Side pontoon length	6300mm
Side pontoon width	1500mm
Side pontoon height	1230mm
Positioning piles	4pcs
The length of Positioning piles	6000mm
