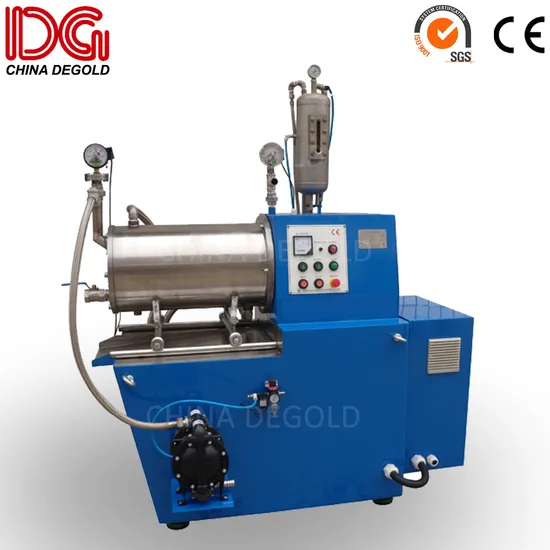

30 Liters Nano Horizontal Bead Mill Impeller China

Product Description

Product Description:
DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size.
Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.
Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.
Application:
Technical Data (Three series for 30 Liters Option) ZM Series:

		ZM0.3	ZM1.4	ZM5	ZM15	ZM20	ZM30	ZM50
Effective grinding chamber volume (L)		0.3	1.4	5	15	20	30	50
Main motor power (kW)		0.75	2.2	7.5	15	18.5	22	30
Grinding shaft rotary speed (r/min)		0~1500	0~2800	1650	1200	1200	1120	900
Adjustable range of materials flow (L/min)			0~1	0~2	0~2	0~10	0~10	0~60
Max. cooling water consumption (t/h)			0.5	1	1	2	2	2.5
Estimated productivity (kg/h)			2~20	12~120	30~300	40~400	50~600	100~1000
Dimension (mm)	L	640	650	1250	1560	1600	1860	2100
	W	410	570	900	1050	1050	1100	1150
	H	485	885	1250	1550	1550	1550	1650
Net weight (kg)		50	500	700	800	980	1100	1300
Note: Technical data are different if there are some customized constructions.

ZM-X Series:

Model		ZM5-X	ZM15-X	ZM20-X	ZM30-X	ZM50-X	ZM100-X	ZM200-X
Effective grinding chamber volume (L)		5	15	20	30	50	100	200
Main motor power (kW)		11	18.5	22	30	37/45	45/55	55/75
Grinding shaft rotary speed (r/min)		1650	1200	1200	1120	900	700	550
Adjustable range of materials flow (L/min)		0~2	0~2	0~10	0~10	0~60	0~60	0~150
Max. cooling water consumption (t/h)		1	1	2	2	2.5	2.5	3~4
Estimated productivity (kg/h)		15~150	40~400	50~500	60~800	150~1500	150~1500	200~2000
Dimension (mm)	Length	1250	1560	1670	1760	1970	2175	2150
	Width	900	1050	1050	1050	1150	1200	1200
	Height	1250	1550	1565	1585	1650	1880	2150
Net weight (kg)		700	800	1000	1150	1350	2000	2500
Note: Technical data are different if there are some customized constructions.

Production Line
Our Services:
We can send out one or two technicians to buyer's location for providing installation and training service.
Packaging & Shipping: Fumigation wooden box. The grinding medium usually be packed with the bead mill together.

---
