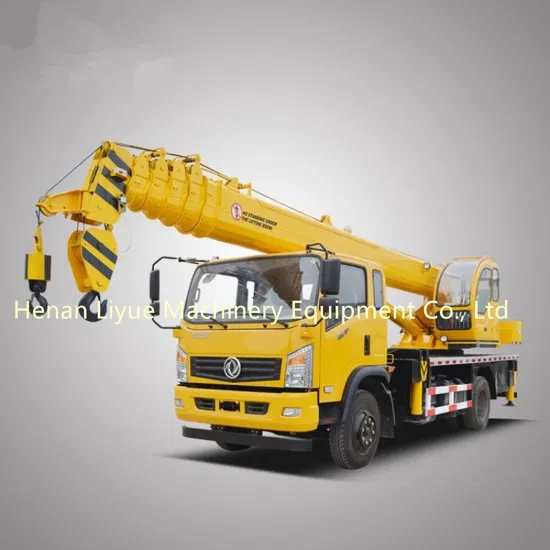

Chinese Famous Brand 6 Ton Telescopic Boom Truck Crane Truck Hydraulic Crane

Product Description

6ton Small Construction Truck Crane Product Description

Project		Unit	Value
Crane Dimension	Model	-	QY 6-5-24
	Dimensions (L*W*H)	mm	8950*2190*3000
	Outrigger Longitudinal/ Horizontal Span	mm	3650/ 2190-4290
	Outriggers Quantity	piece	5
	Basic Boom Lifting Length	m	7.35-25.35
	Main Boom Elevation	º	3-80
Working Parameter	Boom Quantity	Section	5
	Hydraulic Tank Capacity	L	140
	Max. Total Lifting Capacity	KG	6000
	The Basic Boom Lifting Torque (Max.)	KN.m	180
	Max. Lifting Height	m	24
	Working Radius	m	3--16
	Max. Slewing Speed	r/ min	≤3
Dongfeng Chassis Parameter	Total Mass	kg	8280
	Front And Rear Axle Load	kg	2680/ 5600
	Drive Type	-	4*2 Left/ Right
	Emission Standard	-	Euro 3
	Tyre Size	-	7.50-16LT
	Front/ Rear Track	mm	1690/ 1650
	Engine Power	HP	102
	Wheel Base	mm	3360
Travelling Parameter	Max. Travel Speed	Km/ h	75
	Max. Gradeability	%	30
	Min. Turning Diameter	m	14
	Approach Angle/ Departure Angle	º	20/ 12
	Fuel Consumption of 100km	L	16
	Min. Ground Clearance	mm	260

Product Process
Famous Brand Hydraulic Parts for our Truck Crane



Prodution Progress

Packaging & Shipping

Client Visit

Certifications


Optional Device


Advanced Equipment
Our Advantages

1- Large outrigger span, more stability of the operation.
2- Using six-edge type boom, the strength is greater.
3- Using European and American top hydraulic components, the crane is more reliable.
4- Oil circuit interface is chuck type, never loophole.
5- Using multi-leg control valves. Leg cylinders can be adjusted separately, more convenient and quick.
6- Using high-strength steel plate, the structure is more compact, the installation space is smaller.
7- Plate using laser cutting machine blanking, streamlined appearance has a good sense of beauty.

FAQ

A: Are you the manufacturer?
Q: Yes, we are the manufacturer.
A: What kind of truck cranes do you produce?
Q: Truck crane and truck mounted crane from 2.5T to 25T.
A: What kind of truck chassis do you use?
Q: Dongfeng, T-King truck and so on.
A: What are your payment methods?
Q: T/ T, L/ C, West Union, Paypal, Money Gram, Alipay and so on.
A: What is the delivery time?
Q: Within 20 days after we receive the deposit.
A: What's the mode of transportation?
Q: Normally by 40 feet open top containers, flat rack container or bulk vessel.
A: How long is the warranty?
Q: 1 Years warranty service.
A: How long is the history of your factory?
Q: LIYUE has been in producing truck cranes since 1980.

---
