Agriculture Machine Disc Harrow Withgood Quality

US$1,800.00 1 Piece (MOQ)

Basic Info.

Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Green
Warranty
One Year
Overall Dimension
532*288*134
Weight
3000 Kg
Working Width
2.5
Working Depth
20
No of Disc
24
Matched Power
55-73.5
Dia.of Disc
660
Transport Package
Iron Shellframe Box
Specification
SGS
Trademark
dadi
Origin
China Shandong
HS Code
8432290000
Production Capacity
5000sets/Year

Product Description

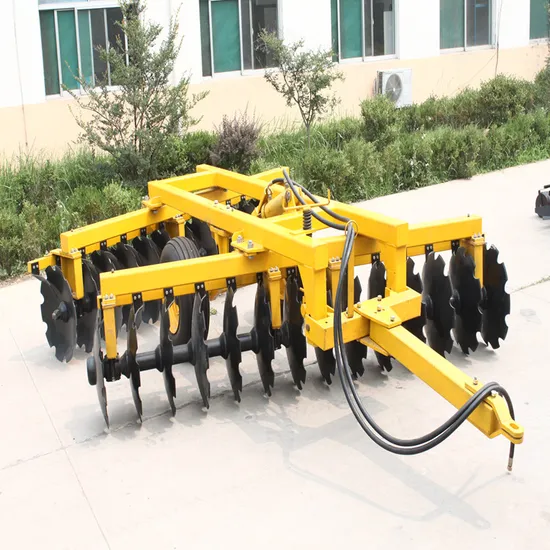

Disc Harrow Agriculture Machine
The series agricultural machinery heavy-duty off-set disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and chang directiong on the edge of fields.

Model		 Unit 1BZ-1.8 1BZ-2.2 1BZ-2.5 1BZ-3.0 1BZ-3.4
Overall dimension cm 480*200*134 482*244*134 532*288*134 532*332*134 582*376*134
Weight kg 1050-1100 1250-1300 1380-1430 1500-1550 1650-1700
Working width m 1.8 2 2.5 3 3.4
Working depth cm 20
Blade spacing mm 230
No of disc pc 16 20 24 28 32
Dia.of disc mm 660
Transport clearance mm >160
Productivity ha/h 1.1 1.3 1.4 1.7 1.9
Matched power kw 44-55 52.9-66.2 55-73.5 58.8-88 66.2-100
Linkage Trailed
