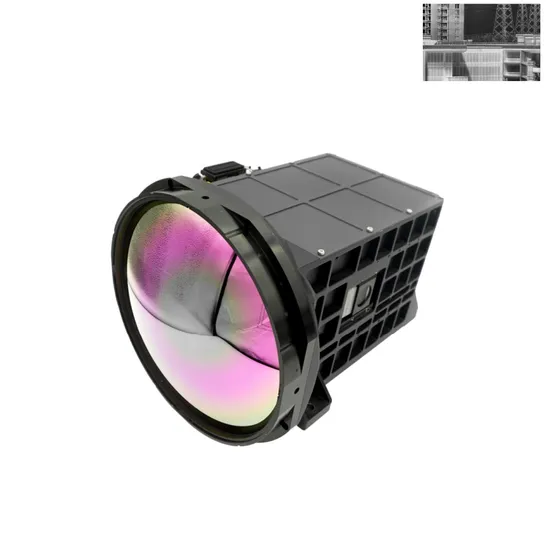

High Performance 1280 10um Mwir Cooled Thermal Imaging Camera

Product Description

Product Description The MWIR thermal imaging core uses a high-sensitivity MCT focal plane detector with Stirling cooling. It has a spec tral response range of 3.7μm to 4.8μm, a pixel size of 10μm, and features a modular design that is compact and highly integrated. It includes advanced technologies such as multi-background non-uniformity automatic calibra tion, image noise filtering, digital detail enhancement, and automatic light adjustment. The system boasts high sensitivity, easy integration, a variety of interfaces, high reliability, and strong expandability
Product Feature Adaptive non-uniformity correction technology.
High linearity, high stability, and high repeatability, suitable for radiation characteristic measurement.
Miniaturized and compact infrared imaging implementation technology.
Supports multiple video outputs: CameraLink/GigE/SDI/optical fiber.
Product Parameters

Technical Specification
	Model Number	LD-MW1280-10
	Resolution	1280×1024
	Pixel Pitch	10μm
	FNo	2.04.0
	Materia	HgCdTe
	Spectral Range	3.7μm-4.8μm
Detector	NETD	≤25mk@25ºC
	Cooler Type	Stirling
	Cooling time	<8min (normaltemperature)
	Non-uniformity	0.1%(after calibration)
	Frame Rate	50Hz
	Sync	ntemal sync,extemal sync
Environmental	Operating Temperature	-40ºC=+65ºC
	Storage Temperature	-45ºC~+70ºC
Adaptability	Shock	Acoeleration of 30g,with a half-sine distribution of 11ms
Physical Features	Size	149mm×89mm×1llmm
	Weight	<2kg
	hputvoltage	28V±2
	Stable Power Consumption	≤35W@20C
Interface	VideoOutput	CameraLink/GigE/SDI/fiber
	Communication nterfaoe	RS422serial port
	Sync hterfaoe	RS422/LVDS

Product Application The MWIR thermal imaging core can be widely used in various fields, including:border protection,industrial monitoring,- fire warning,surveillance and search,night vision equipment,character measurement,thermal imaging observation,air defense surveillance,scientific research,infrared identification.
Mechanical Drawing

Image Effect
About us Xi'an Zhongke Lead IR-Tech Co., Ltd established in 2015, is a R&D enteprise based on intelligent electro-optical equipment and infrared thermal imaging technology, incubated by Xi'an Institute of Optics and Precision Mechanics of China Academy of Sciences.
Lead IR-Tech has three core centers: Photoelectric equipment integration, precision optical processing, and specialized lens calibration. They are equipped with over 400 advanced devices, including CNC polishing machines, photoelectric, coordinate measuring machines, interferometers, and photoelectric system testing systems. This enables LEAD IR-TECH to achieve the full process of design, processing, integration, and testing of photoelectric products.
