Wolfram Tungsten Electrode Rod Wl15 1.5% Lanthanum Tungsten Electrode for Welding ANSI/Aws A5.12-98

Product Description

Tungsten electrode rod dia2.4*175 (WL tungsten electrode for welding) ANSI/AWS A5.12-98
We have many kinds of tungsten electrode type:
Pure tungsten electrodes-WP(marked green color)
Lanthanum tungsten electrodes-
WL10(marked black color)
WL15(marked gold color)
WL20(marked blue color)
Cerium tungsten electrodes- WC20(marked gray color)
Yttrium tungsten electrodes- WY20(marked sky blue color)
Zirconiated tungsten electrodes- WZ3(marked brown color)
WZ8(marked white color)
Thoriated tungsten electrodes- - - WT10(marked yellow color)
WT20(marked red color)
WT30(marked purple color)
WT40(marked orange color)

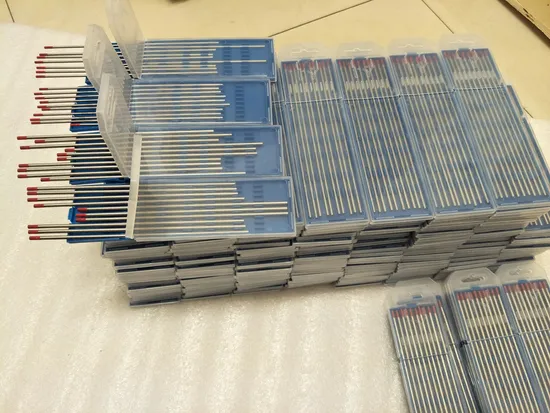

Available sizes: (10pcs in one plastic packing)
1.0mmX150mm, 1.0mmX175mm1.6mmX150mm, 1.6mmX175mm2.0mmX150mm, 2.0mmX175mm2.4mmX150mm, 2.4mmX175mm3.0mmX150mm, 3.0mmX175mm3.2mmX150mm, 3.2mmX175mm
Tungsten Electrode (WT20 electrode, lanthanum Tungsten electrode, WY20 WC20 WL20 WZ tungsten rod dia2.4 tungsten electrode)
WT electrodes---Thoriated tungsten electrodes: Grade: WT10 WT20 WT3 WT40
Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, 5.0, 6.0, 10mm, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
Length: 150mm, 175mm, 800-1100mm, etc.
Surface: polished, ground, black.
Density: 19.2g/cm3
Tungsten electrode appearance: the surface is smooth and straight, no defects.
WC20 electrodes---Cerium tungsten electrodes- (marked gray color)
Grade: Wc20
Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, 5.0, 6.0, 10mm, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
Length: 150mm, 175mm, 800-1100mm, etc.
Surface: polished, ground, black.
Density: 19.2g/cm3
Tungsten electrode appearance: the surface is smooth and straight, no defects.
WY20 electrodes---Yttrium tungsten electrodes- (marked blue color)
Grade: WY20
Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, 5.0, 6.0, 10mm, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
Length: 150mm, 175mm, 800-1100mm, etc.
Surface: polished, ground, black.
Density: 19.2g/cm3
Tungsten electrode appearance: the surface is smooth and straight, no defects.
WL10 WL15 WL20 electrodes--Lanthanum tungsten electrodes:
Grade: WL
Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, 5.0, 6.0,10mm, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
Length: 150mm, 175mm, 800-1100mm, etc.
Surface: polished, ground, black.
Density: 19.2g/cm3
Tungsten electrode appearance: the surface is smooth and straight, no defects.

Type	Trademark	Added impurity	Impurity quantity %	Other impurities%	Tungsten %	Electric discharged power	Color sign
Lanthanated Tungsten Electrodes	WL10	La203	0.8-1.2	< 0.20	The rest 99.95%	2.6-2.7	Black
	WL15		1.3-1.7			2.8-3.0	Gold
	WL20		1.8-2.2			2.8-3.2	Sky Blue

Trademark	Added impurity	Impurity quantity	Other impurities	Tungsten	color sign
WT10	Th02	0.9-1.2	< 0.2	The rest	yellow
WT20	Th02	1.8-2.2	< 0.2	The rest	Red
WT30	Th02	2.8-3.2	< 0.2	The rest	Purple
WT40	Th02	3.8-4.2	< 0.2	The rest	Orange

Welding Tungsten Rod/Electrode for TIG Welding dia2.4*150mm/ dia2.4*175mm
2% thoriated ground annealed WT20
Pure Tungsten Electrode (WT20 electrode, lanthanum Tungsten electrode, WY20 WC20 WL20 WZ tungsten rod dia2.4 tungsten electrode)
1) We can supply electrodes of thoriated tungsten, ceriated tungsten, lanthanated tungsten, zirconiated tungsten, pure tungsten. 2) Item: WP, WT7/20/30/40, WC15/20, WL10, WL10/15/20, WY20, WZr3/8. 3) Diameter: 1.0- 10.0mm. etc 4) Length: 150/175.00mm. etc 5) Applications: GTAW / TIG welding and plasma welding, cutting,etc.

Trademark	Added impurity	Impurity quantity	Other impurities	Tungsten	Electric discharged power	color sign
WT20	ThO2	1.7-2.2	< 0.20	The rest	2.0-3.0	Red
WP	---	---	< 0.20	The rest	4.5	Green
WL10	La2O3	0.8-1.2	< 0.20	The rest	2.6-2.7	Black
WL15	La2O3	1.3-1.7	< 0.20	The rest	2.8-3.0	Goldyellow
WL20	La2O3	1.8-2.2	< 0.20	The rest	2.8-3.2	Skyblue
WC20	CeO2	1.80-2.20	< 0.20	The rest	2.7-2.8	Grey
WY20	YO2	1.8-2.2	< 0.20	The rest	2.0-3.9	Blue
WZ8	ZrO2	0.7-0.9	< 0.20	The rest	2.5-3.0	White

Pure tungsten rods
1. 99.95% Pure Tungsten Rods
Excellent price 99.95% black molybdenum rods description
1)Purity: ≥99.95%
2)Forged density:>19.2g/cm3
3)Welding tungsten rod: WT WL WP WC WY, and dia1.0-10mm Length: 150/175/1100mm
4)Surface:black,ground,polished
5) Rod Size: diameter2-120mm Length<2500mm
6)Straightened rods after drawn diameter0.8mm-3.2mm
2.Tungsten rods surface finish:
Black:Surface is "as swaged" or "as drawn"; retaining a coating of processing lubricants and oxides.
Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.
Ground - Surface is centerless ground to remove all coating and to achieve precise diameter control.
3. Tungsten rods available size:
Forged rods size: Diameter(2-100mm)*Length<2500mm
Strainghtened rods after drawn diameter 0.8-3.2mm

Tungsten Content	Type	Diameter (mm)	Dia.Tolerance (mm)	Length (mm)	L tolerance (mm)
99.95%	Sintering rod	40-100	±3	500max	±5
99.95%	Forged rod	20-80	±2	800max	±5
99.95%	Ground rod	2-60	±0.1	600max	±1

4. Tungsten rods chemical composition

Content of Tungsten	Content of all other elements	Content of each element
≥99.95%	≤0.05%	≤0.01%

5. Application & Features Used as electrodes in the field of rare earth metal industry;
For producing electric light source parts and electric vacuum components;
Used in electric boosting glass kiln electrode;
Suitable for producing ion implantation parts;
For producing heating elements and refractory parts in high teperature furnaces;
Very good interlaminar strength at strong thermal and mechanical loadings
6. More information about us:
We promise you -- The advantage of us: 1) products quality, with many years of producing experience 2) low price in the market, and factory direct sales. 3) the whole production line from powder to finished products, top and steady quality assured
4) safe packing for safe exprot delivery, and fast manufacturing time 5) fast delivery and best after-sale service.
Our main products:
Molybdenum Products
Molybdenum rods/ Molybdenum plate /Molybdenum sheet
Molybdenum wire/ alloy Molybdenum wire/ Moly wire for EDM
Molybdenum electrode/molybdenum disk/Molybdenum boat/ Molybdenum Crucible/Molybdenum tube
Tungsten Products
Tungsten rods/ Tungsten plate/ Tungsten sheet
Tungsten wire/ Tungsten electrode
Tungsten crucible /Tungsten boat/ Tungsten tube
Other specail shape/part
Alloy Products
TZM Products/MoLa products, WC, Ti, Ta, Ni, etc.
WNiFe / WniCu Product/ Alloy ball/WC-Co
Tungsten fishing products
Tungsten bead, tungsten alloy shot for hunting, tungsten metal material

---
