Product Description
Product Description
HC-A014A Top quality double screen 4D trolley color doppler ultrasound machine with good price
Trade assurance
Product Description
Features for HC-A014A Top quality double screen 4D trolley color doppler ultrasound machine with good price:
| Based on Windows 7 platform, equipped with SSD (Solid State Disk), make the storage safer and more reliable, easy for switch machine. |
| Hard disc:120G SSD+500G HDD |
Application: Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal
1. Monitor:19 inch LED medicinal monitor+10Inch LED touch screen monitor
2. Scanning mode:convex array/linear array/micro-convex array
3. Probe interface:≥4, active
Support: convex, linear, trans-vaginal, micro-convex, phased array, 4D volume, rectal probes etc.
4. Language: Chinese/English/Spanish/French/Portuguese/Russian/Arabic/
Vietnamese.
5. Display mode: B mode(B, B+B, 4B, B+M,M), C mode, PW mode, CW mode, real time 3D mode(4D), B/C, B/C/PW, B/PW: 4 scanning speed adjustable
6. Electronic focus: 4
7. Body mark: ≥57
8. Frequency: 2.0-12.0MHz multi-frequency (2.0MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.5MHz, 5.0MHz, 6.5MHz, 9.0MHz, 6.0MHz, 7.5MHz, 12.0MHz as per probe)
Convex probe frequency range: 2.0, 3.0, 3.5, 4.0, 5.5MHz
Trans-vaginal probe frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
Phased array probe frequency range: 2.0, 3.0, 3.5, 4.0, 5.0MHz
Linear probe frequency range: 6.0, 6.5, 7.5, 10.0, 12.0MHz
Micro-convex probe R20 frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
Micro-convex probe R11 frequency range: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0MHz
4D volume probe frequency: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5MHz
9. Image processing: up/down,left/right,angle,blood flow reversal
10. Magnification: 2-10 times magnification
11. Automatic freeze function: effective protection of probe life without any operation
12. Alternative image storage method: UI storage and image storage only
13. Cine loop speed, visible and adjustable
14. Measurement: distance, circumference, area, volume, heart rate, tube diameter, narrow rate, angle, speed, abdomen, cardiac, general, musculoskeletal, early obstetric, middle and late obstetric, pelvic(uterus accessory), small organ, urology, peripheral, gestational week and EDD, fetal weight, etc, formula can be converted to edit in obstetric measurement. The distance, circumference and volume measurement of 3D mode.
15. Note: date, clock, name, gender, age, doctor, hospital, note (full screen character editing)
16. Cine loop≥1200 frames, can be viewed continuously or by frame (preset 1280 frames)
17. Storage: in the storage display interface can be sent to directly to the mobile device, image storage path (can be stored directly to the U disk and other external storage devices), probe parameter storage, cine loop storage, measurement results storage, report storage.
18. Gray Scale: 256
19. With puncture guide function, puncture line position can be adjusted
20. With gravel positioning, dynamic target tracking function.
21. Dynamic range:0-270dB
22. Intelligent TGC: 8 segments
23. Pre-processiong: variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI etc.
24. Post-processing:
Dynamic range 0-270dB,
black and white afterglow 0-7
Smoothing 0-7
Gray curve 1-16
Frame correlation
SHG (Second Harmonic Generation)
Sound power
Wall filter
Cumulative number, baseline adjustment, sampling frame adjustment, spectrum sampling volume, spectral sampling volume angle, PRF, etc.
25. Blind zone:≤4
26. Max scanning depth: 320mm;
27. Geometric accuracy: horizontal≤5%, vertical≤5%
28. Resolution: lateral≤2mm, axial≤1mm
29. External interface: VIDEO, USB port *4, DICOM 3.0
30. Magnification: 16 kinds; disease diagnosis more accurate
31. Frame rate:5-1016fps (adjustable as per requirement)
32. Scanning range: 5%--100%
33. Gain control:Total gain 0~127dB, PW gain 0-15, CFM gain: 0-15
34. Image optimization: 6 level adjustable
35. Smoothing: 8 level adjustable
36. Edge enhancement: 8 level adjustable
37. PRF: 16 level adjustable (1.82-29.43KHz)
38. Gray level curve: 16 level adjustable
39. Sound power: 15 level adjustable

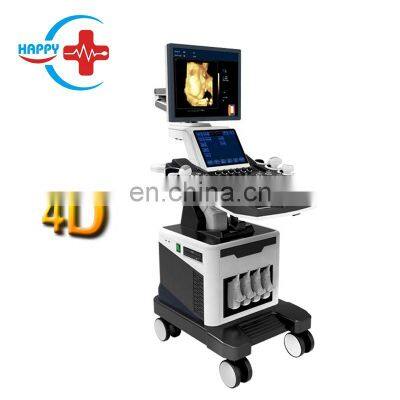

Pictures for HC-A014A Top quality double screen 4D trolley color doppler ultrasound machine with good price:
Packaging & Shipping
Company Information
Our Services
FAQ
1. How to place order of HC-A014A Top quality double screen 4D trolley color doppler ultrasound machine with good price ?A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-A014A Top quality double screen 4D trolley color doppler ultrasound machine with good price product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-A014A Top quality double screen 4D trolley color doppler ultrasound machine with good price , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-A014A Top quality double screen 4D trolley color doppler ultrasound machine with good price , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For HC-A014A Top quality double screen 4D trolley color doppler ultrasound machine with good price , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
>>
