DVB-T/ATSC/ISDB-T 100W Digital TV Transmitter

Product Description

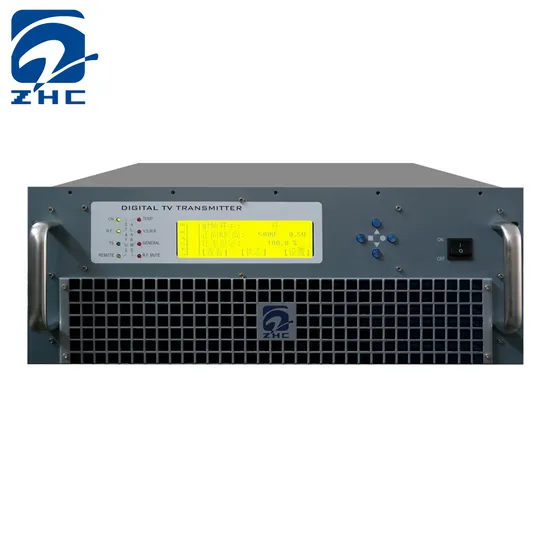

ZHC518D-100W Digital TV Transmitter
Features:
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous works.
Technical Specifications:
1. Working frequency: VHF/UHF
2. Channel bandwidth: 50MHz
3. Output power: 100W
4. Output impedance: 50Ω
5. Output interface: 7/16"
6. Output load return loss: Normal operation: -32dB
Allowed operation: -20dB
7. Power input level: 0dBm
8. Amplifier input impedance: 50Ω
9. Amplifier input interface: N"
10.Useless transmission: ≤-60dB
11.Band fluctuations: ±0.5dB
12.Band shoulder: better than 36dB
13.MER: better than 30dB
14.Size: 820mmX570mmX390mm
15.Weight: 45KG

PRODUCTS WORKSHOP :

Testing before shipment:

Packaging & Shipping:
Common Problems:
Q1.What these equipments used for?
A1.We are original manufacturer in FM Radio & TV Broadcasting equipments;They are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)
Q2.What equipment & solution your company can provide?
A2.We can do complete solution for FM Radio Station System.It includes:Studio--Link--Transmitter--Cables--Antenna.
We also can provide complete Transmitting part of TV Station.It includes:Link-Transmitter-Cables-Antenna.
Q3.How large areas can One Station cover?
A3.One FM or TV Station can cover one city or one town.
The Maximum cover ranges of one station can not over 100KM Radius because the Earth is Curve.
You can use Multiple Stations & Different Frequency to cover larger area.
Q4.How do I choose suitable equipments for my station?
A4.The most import factors are Power and Frequency.
We need to know your Power and Frequency.
How long the distances do you want to cover in Radius?
How height your Antenna can be installed?
Q5.How to calculate Broadcasting equipment Cover Range?
A5.Depends on 4 factors:
1.Power from Transmitter;2.Height of Antenna;3.Gain from Antenna;4.Around Environment.
Q6.Is the Frequency Adjustable?
A6.FM Radio Band Frequency is 87~108MHz, TV Band Frequency includes UHF/VHF band.
For FM Radio Transmitter;Power Below 2KW is all adjustable.Above 2KW would be narrow.
For TV Transmitter;All Frequency Band is very Narrow, only can contain around 3 Channels;So it's not adjustable.
Q7.How to do installation of these equipments?
A8:Small power station is easy for installation.
Large power station:we send engineer to do the installation, but you pay the cost.
We can do training for your engineer in our factory.
Q8.What about after sales?
A8.Warranty time:one year after goods leaving factory.
We can provide technical support from internet or in our company.
We can send spare parts to you directly when the equipment damaged.


CONTACT US: Mike Cai
International Sales Director ZHC(CHINA) Digital Equipment Co., LTD Add: Building 5th, No.23, Jugong Rd. Binjiang District, Hangzhou, China

---
