Long Range Thermal Imaging Camera 30X PTZ Cameras Marine Ship&Yacht Vehicle Car Ugv Mobile Security Smart Robot Border Defense

Product Description

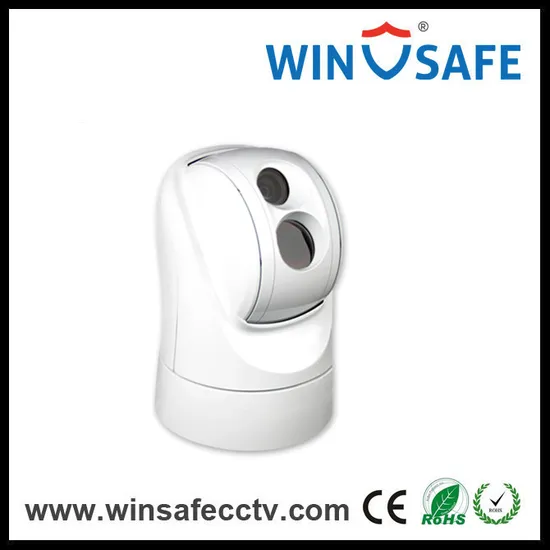

PATC-F Sereis thermal PTZ camera is a maritime standard ruggedized thermal vision system, housed with aluminum, the camera is anti-corrosive and IP67 rated, enabling it to work properly even in tough sea environment
The camera incorporates a 640x480/384x288 uncooled thermal core and a 30x daylight camera, added its radar tracking, digital stabilization, 24hz/30hz continuous thermal imaging capability, easy control with maritime keyboard controller, making the camera a perfect system to assist mariners to safely navigate.
Feature/PATC-F Series Thermal PTZ Cameras
- Uncooled Amorphns Silicon FPA, resolution:384x288/640x48
- 1/2.8" CMOS Sensor color visual camera, 2.13 MP, 30X Optical zoom
- Dual HD-SDI/Analog output for color visual camera and thermal imaging camera
- H.264 output for color visual camera and thermal camera
- Single axis vertical stabilization
- Day/Night(ICR)
- Self PTZ address, self-adaption of protocol and baud rate
- 10.8-32V wide range voltage input
- Waterproof index:IP67
Feature/MKB-01
- IP66 Waterproof
- Control basic features of PATC series thermal cameras
- 3 axis joystick, OLED display
- Two color backlights
- Support to customize keys
- Control through both RS485 & Ethernet
- Support Pelco D/P protocol
- Baud Rate 2400bps, 4800bps, 9600bps,19200bps
- Small size:141mm(L) x 90mm(W) x 117mm(H)
- Only 0.8kg, easy installed on the ship control platform
Radar Tracking
PATC-F Series camera recives, reads, analyzes NMEA0183 strings from Radar and manages algorithm calculation from current vessel position to target(s), finally camera move to view the gargets actively Continuous Thermal Imaging
The uncooled 640x480/384x288 thermal core is with 25hz/30hz, provides clear and continuous thermal images.
Radar Tracking and Video Tracking IP Thermal Imaging Marine PTZ Camera
Radar Tracking(Optional)
PATC-F Series camera recives, reads, analyzes NMEA0183 strings from Radar and manages algorithm calculation from current vessel position to
target(s), finally camera move to view the gargets actively.
Video Tracking(Optional)
The function allows a target lock on the video image and allows tracking the camera keeps pointed on it
Digital Stabilization
The in-built digital stabilization system is able to compensate vertical angels to stabilize images, enabling the camera to perform well even in rough
weather conditions
Continuous Thermal Imaging
The uncooled 640x480/384x288 thermal core is with 25hz/30hz, provides clear and continuous thermal images.
Indicators On Thermal & Daylight Images
Position indicators, status and scene icons are displayed on both thermal & daylight cameras,providing direct and exact information to assist
navigation.
Image Freeze Capability On Thermal & Daylight Images
Both cameras support to freeze images on demand, enable to view more details of specific images

Technical Specification
Model No.	PATC-FZ319S2008GT	PATC-FZ340S2008GT	PATC-FZ619S2008GT	PATC-FZ640S2008GT
Thermal Imaging Camera
Sensor Type	Uncooled Amorphns Silicon FPA
Working Band	8μm~14μm
Resolution	384 x 288		640 x 480
Sensor Size	17μm
NETK(300K)	≤60mk
FOV	19mm:19.5° x 14.7°	40mm:9.3° x 7°	19mm:32.0° x 24.2°	40mm:15.5° x 11.6°
Detecting Range	Vehicle:2570m Man:550m	Vehicle:5400m Man:1170m	Vehicle:2570m Man:550m	Vehicle:5400m Man:1170m
Recognition Range	Vehicle:640m Man:130m	Vehicle:1350m Man:290m	Vehicle:640m Man:130m	Vehicle:1350m Man:290m
Video Display	Black Hot / White Hot White Hot/Black Hot/Color Palettes	White Hot / Black Hot /Color Palettes
Digital Zoom	1X,2X,4X
Daylight Imaging Camera
Video Sensor	1/2.8" SONY "Exmor R" CMOS, 2.13 Megapixel
Zoom	Optical: 20X; Digital:12X
Lens	f = 4.7mm - 94mm, F1.6.-F3.5
View Angle	59.5°(wide) - 3.3°(tele)
Min.Illumination	Color: 0.0013Lux; Mono:0.0008Lux
WDR	On/Off
DNR	1 - 5 Step/Off
PTZ
Pan Range	360° Continuous
Pan Speed	Control speed: 0.04° - 100°/s; Preset speed: 100°/s
Tilt Range	-15° - 90°(Auto Flip)
Tilt Speed	Control:0.04° - 90°/s, adjustable; Preset Speed: 90°/s
Preset	256
Digital Stabilization	Single Axis vertical stabilization
Network
Resolution	Max.1920x1080 @ 30fps
Video Compression	H.264
Network Protocols	HTTP, HTTPS,RTSP,TCP,UDP,ONVIF
Dual Stream	Support
General
Control Interface	RS-485
Adress	0 - 255
Video Output	Dual CVBS outputs
Network Interface	10M/100M
Comm Protocol	PELCO-P/PELCO-D(Self-Adaptive)
Baud Rate	2400bps, 4800bps,9600bps,19200bps(Self Adaptive)
Power	DC 10.8 -28V,35W
Working Temperature	-25°C - +55°C
IP Code	IP67
Dimensions	Φ190(mm) x 275(mm)
Weight	6.3±0.1Kg
