US$30,000.00-41,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO9001
Process
Thermal Processing
Automatic Grade
Automatic
Coneyor Belt Speed
0-5m/Min
Transport Package
Wooden Case
Specification
L*1430*1820mm
Product Description

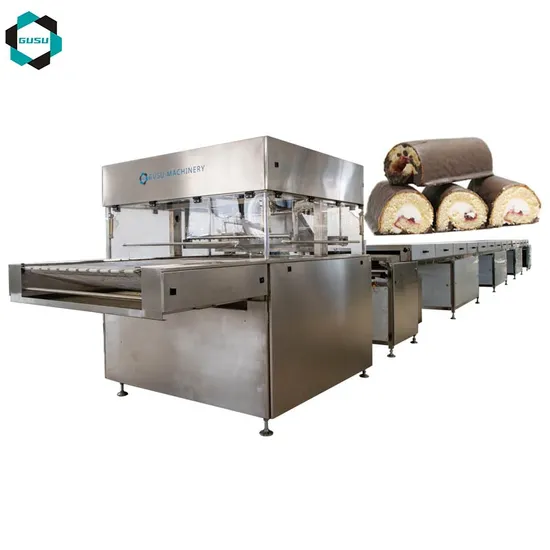

Chocolate Enrobing Line TYJ
Product Description
TYJ Series Chocolate Enrobing Machines used for enrobing chocolate on the surface of products such as candies, cakes, and biscuits, etc. you can make various unique flavors.
Features:
1) Widths from 400mm to 2000mm;
2) Easy maintenance and cleaning of the chocolate containment tank, with removable mesh conveyor;
3) High speed air-blowers adjustable by inverter group, to remove chocolate excess;
4) Industrial blower with variable temperature and adjustable height to remove excess chocolate;
5) Adjustable speed vibrational feature to remove excess chocolate;
6) Manufactured with food grade approved materials such as stainless steel and plastics;
7) Bottom only or full coating of products;
8) Easy access to maintenance and clean;
9) Built in stainless steel SUS304.
Technical Parameter
| Model | TYJ1200 | TYJ1000 | TYJ900 | TYJ800 | TYJ600 | TYJ400 |
| Mesh Belt Width(mm) | 1200 | 1000 | 900 | 800 | 600 | 400 |
| Mesh Belt Speed(mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Conveyor Belt Width(mm) | 1200 | 1000 | 900 | 800 | 600 | 400 |
| Conveyor Belt Speed(mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Tunnel work Temp.(ÂșC) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Total Power(KW) | 17.37 | 17.37 | 17.37 | 17.37 | 15.82 | 15.82 |
| N.W.(kg) | 4000 | 3600 | 3200 | 2800 | 2300 | 2000 |
| Overall Size(mm) | L*1830*1820 | L*1630*1820 | L*1530*1820 | L*1430*1820 | L*1230*1820 | L*1030*1820 |
Combinatorial Arrangements Automatic feed mechanism which can reduce operation staffs to improve production efficiency. Patterns decorator which can make different colors of curve patterns coated on the surface to improve product level. Material Spreader which can spread crushed peanut, sesame or other nuts granules on the chocolate surface to enhance flavors.
RAQ
1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better
2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
