Sugar Crushing Machine

Product Description

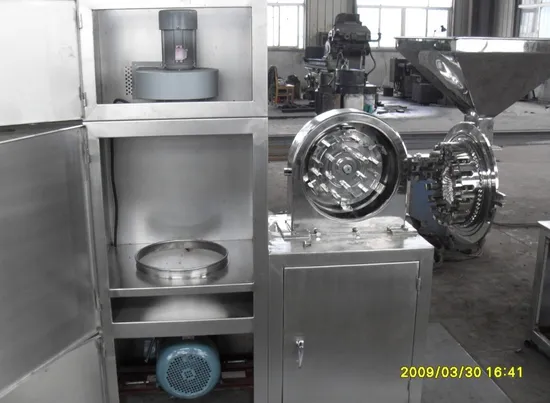

Product Description XB Universal Pulverizer
Description
XB universal grinder is composed of main engine, auxiliary engine and electric control. After entering into the crushing room, materials are crushed under the effect of mutual impact of active chain-ring and fixed chain-ring in high speed rotation. Then they become the powder after sieved from the screen.

Application
XB universal pulverizer equipment is broadly used in pharmaceutical, chemical, pesticides, food, cosmetic and dyes industries.

Features
1. XB universal grinder features compact design, simple and reasonable structure as well as easy operation.
2. Universal pulverizer is equipped with rating devices which makes a complete crushing and classification.
3. The production process of universal grinder is continuous and the particle size of universal pulverizer is adjustable.

Parameters of Universal Grinder

Model	20B/20Bunit	30B/30Bunit	40B/40Bunit	60B/60Bunit
Production Capacity (kg/h)	60 to 150	100 to 300	160 to 800	500 to 1500
Spindle Speed (r/min)	4500	3800	3400	2800
Feeding Size (mm)	6	10	12	15
Crushing Fineness (mesh)	60 to 120
Power of Motor (Kw)	4	5.5	7.5	15
Vacuum Fan Power (kw)	0.75	0.75	1.1	2.2
Weight (kg)	250	320	550	680

---
