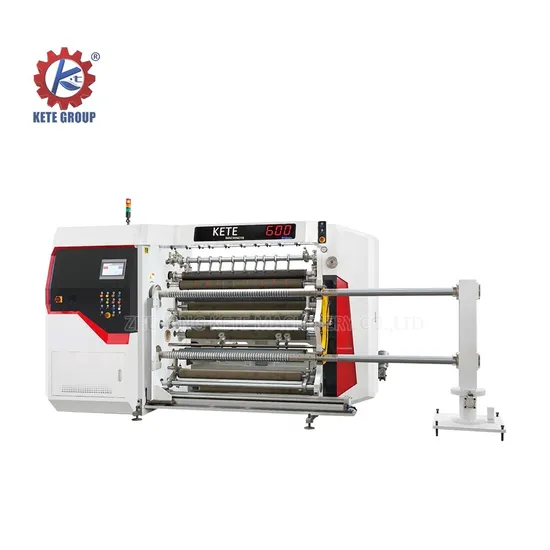

Plastic Film Slitting Machine Slitter Rewinder Machine BOPP PVC Film Slitting Machine

US$45,000.00-65,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KTSM-V600
Type
Coil Paper Slitting Machine
Work Method
Straight Slitting Knife
Structure
Cutting Part
Packaging
Cartons
Classification
BOPP, Pet, CPP, CPE, PVC, Aluminum Foil
Applicable Process
Process Materials
Suitable Substrates
Aluminum Foil, Adhesive Paper, Leather Paper, Othe
Packaging Material
Wood
Product Name
Plastic Film Slitting Machine
Keyword
Film Slitting Machine
Keyword 1
Slitting Machine Slitter Rewinder
Keyword 2
PVC Film Slitting Machine
Keyword 3
Stretch Film Slitter Rewinders
Keyword 4
Film Slitting Rewinder Machine
Keyword 5
Slitter Rewinder Machine
Keyword 6
Window Film Slitter
Plastic Film Slitting
Yes
Straight Slitting Knife
Yes
Roll to Roll Slitting
Yes
Unwind with Air Shaft
Yes
Rewind with Air Shaft
Yes
with Auto Tension Controller
Yes
Servo Motor Drive System
Yes
Transport Package
Wooden Pallet
Specification
2500x4000x2200mm
Trademark
KETE
Origin
China
Production Capacity
20 Sets/ Month

Packaging & Delivery

Package Size
250.00cm * 400.00cm * 220.00cm
Package Gross Weight
4500.000kg

Product Description


This High Speed Slitting Machine is Suitable For Slitting Roll Materials Such As BOPP, PET, CPP, CPE, PVC, Aluminum Foil, Adhesive Paper, Leather Paper, and
Other Kinds Of Paper, Etc.
Ω Use Straight and Round Slitting Knife.
Ω Unwind Shaft Less Type Auto Loading.
Ω Unwind with EPC Control System.
Ω With Auto PLC Control System.
Model KTSM-V600/ 1100 KTSM-V600/ 1300
Max. Raw Material Width 1000mm (39.4") 1200mm (47.2")
Max. Unwind Diameter Φ800mm (31.5") Φ800mm (31.5")
Max. Rewind Diameter Φ600mm (23.6") Φ600mm (23.6")
Min. Slitting Width 50mm (1.97") 50mm (1.97")
Max. Slitting Speed 500m/min 500m/min
Error <0.5mm <0.5mm
Paper Core Inner Diameter 76mm/152mm (3"/6") 76mm/152mm (3"/6")
Total Power 15kw 18kw
Machine Weight 4000kg 4200kg
Machine Size (LWH) 2200 x 4000 x 2100mm 2200 x 4300 x 2100mm
Machine Power 3 Phase 220 / 380 / 440v 50/60Hz
