Mining Machine for Plastic Parts Production

Product Description

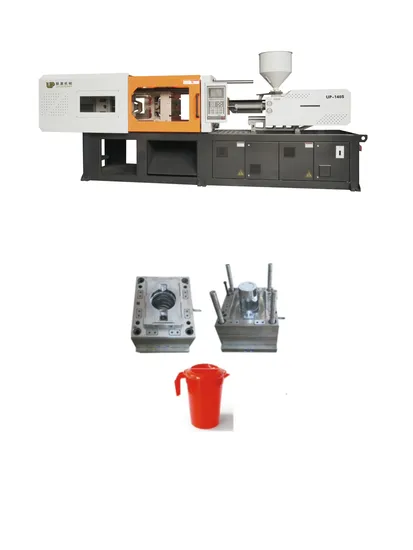

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
The China servo injection molding machine offered by Ningbo Union Power Machinery Co., Ltd. provides advanced features for precise and efficient molding processes. Key specifications include:
Modulus of Capacitance: Ensuring optimal positioning, size, and maximum allowable modulus of capacitance, along with minimum closure thickness of the injection molding machine guide pillar (Green column).
Nozzle Parameters: Including spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture for enhanced control and accuracy.
Code Mold Parameters: Featuring mold hole and slot size specifications for seamless mold coding.
Ejection Mechanism: Providing details on the ejection point position, ejector rod diameter, and optional ejection force and stroke for efficient part removal.
Mold Opening Stroke: Highlighting the opening stroke and maximum distance for easy access and mold manipulation.
Experience superior performance and reliability with this standard injection molding machine from Ningbo Union Power Machinery Co., Ltd.

Technical Parameters	Model UP-140T
Injection Unit	A	B	C
Screw diameter (mm)	38	42	45
Shot Volume (cm3)	215	260	302
Injection weight (g)	194	237	272
injection pressure (Mpa)	186	152	132
Screw speed (rmp)	215
Clamping Unit
Clamping force (KN)	1400
Open stroke (mm)	380
Max Mold height (mm)	450
Min Mold height (mm)	135
Space between tie bars(mm)	420*420
Ejector force (KN)	46
Ejector stroke (mm)	120
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	13(14)
Heating power (KW)	8.2
Machine dimension (M)	4.2*1.2*1.9
Machine weight (T)	3.4
Oiltank cubage (L)	190

---
