US$200.00-1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Vertical Shaft
Transport Package
Iron Box
Specification
950*950*2250mm
Production Capacity
1000set/Month
Product Description

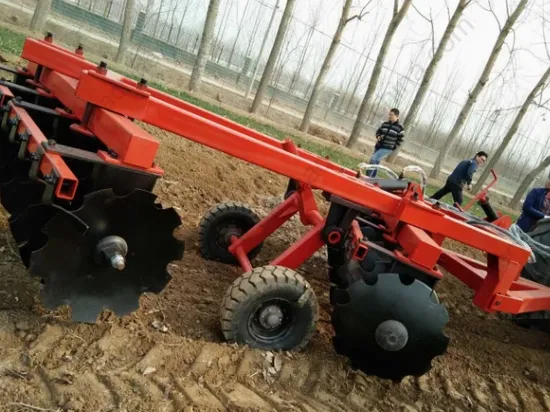

Product Description: Name: Agricultural Equipment 3 Point Mounted Disc Harrow for Tractor Disc Harrow 1BZ series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and afterplough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It ismade of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydrauliclifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of theharrow is dramatically improved. Main Feature 1)Steel selection of China's best Angang and Lingyuan steel, good quality is guaranteed. 2)Heat treatment process, strict control of temperature and time, high hardness and good toughness of disc blade. 3)Automatic spray equipment, disk surface smooth color uniform beautiful.
| Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.2 | 1BQX-3.4 |
| Working Width (mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2200 | 3400 |
| Working depth (mm) | 100-140 |
| No. of disc (pcs) | 12 | 14 | 16 | 18 | 20 | 24 | 42 |
| Diameter Of disc | 460mm/ 18inch |
| Weight (kg) | 200 | 220 | 240 | 260 | 290 | 350 | 1100 |
| Linkage | Three-pointed mounted | Trailed |
| Matched power (hp) | 12-15 | 15-18 | 25-30 | 30-35 | 35-40 | 55-60 | 80-1 |
Normal packing or According to your requirement.Safe, complete and fast delivery of goods to customers
>>
