High Quality Horizontal and Vertical Above Ground Diesel Skid Fuel Tank with Dispenser Pump

Product Description

Introducing the Aboveground Single Wall Diesel & Gasoline Fuel Storage Tank, crafted for chemical applications. This incredible tank boasts exceptional efficiency and reliability, specially designed to meet the stringent demands of modern industry.
Product Description

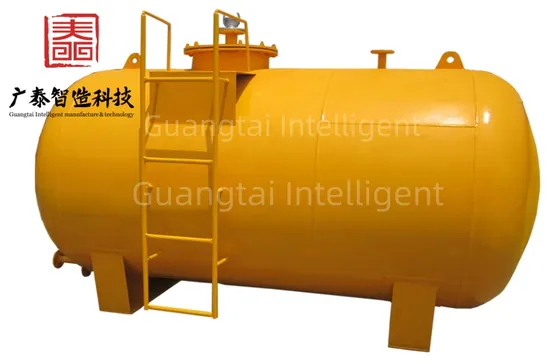

Discover our Stainless/Carbon Steel Storage Fuel Tank, engineered to perfection for the storage of oil, diesel, and a myriad of chemical liquids. Constructed with unmatched quality from premium carbon steel, these storage solutions are available in both vertical and horizontal configurations, ensuring they cater to any spatial and functional requirements. With cylindrical, square, and spherical shapes, these tanks exhibit unparalleled adaptability. The horizontal designs are masterfully crafted, featuring precision-engineered end covers, circular or oval tubular walls, and sturdy saddles. Ideal for integration into production facilities or gas stations, these tanks stand as a testament to durability and cutting-edge design.Skid Stainless Steel Tank Our storage tanks are offered in a range of volumes, typically below 100 cubic meters. Whether round, oval, or uniquely contoured, each tank is meticulously designed to fulfill the varied demands of our esteemed clientele.
Technical Details
1. Pressure: Atmospheric; Temperature Range: From a chilly -19 ºC to a sweltering 200 ºC.
Medium: Ideally suited for the storage of sulfuric acid and a wide array of petroleum chemical raw materials.
2. Capacity: Offers an impressive and adaptable range from 2m³ to a substantial 100m³.
3.Stainless Steel Fuel Tank Our tanks are equipped with wall ray protection, an anti-static design, and comprehensive fire safety measures, each specifically tailored to meet rigorous engineering requirements. This ensures safety and full compliance with the highest sanitation standards.
4. Anti-Corrosive Measures:
The anti-corrosion strategy for the tank walls is meticulously planned based on the stored medium, while the external wall protection is adjusted according to the unique soil conditions surrounding the tank.
5. Type: Available in both horizontal and vertical designs, these tanks are crafted to meet diverse customer preferences.
6. Layer: Choose from single-layered or double-layered tanks according to your specific needs and customer specifications.
7. Capacity Options for Fiberglass Fuel Tanks: Expertly crafted to accommodate a range of capacities from 1,000 to a staggering 100,000 liters, tailored precisely to client specifications.
Technical Parameter
1. Tank Volume: Ranging from 2 to an impressive 100cbm, with customizable options available.
2. Tank Material: Choose from a selection of Carbon steel, Stainless steel, or Aluminium to meet your requirements.
3. Tank Shape: Available in round, square round, and ellipse configurations.
4. Tank Accessories: Comes equipped with essential accessories including a valve, piping, and flange.
Option: Enhance functionality with optional features such as a drip tray, sight gauge, dipping, taps, vent pipes, fixed couplings, screw fittings, overfill prevention device, delivery pipe, and pump.
Basic Parameters and Size for Horizontal Tank

Capacity (cbm)	Tank shape	Diameter (mm)	Length (mm)	Tank wall thickness(mm)
5	Cylindrical	1600	2770	5
10	Cylindrical	1800	4420	5
15	Cylindrical	2200	4440	6
20	Cylindrical	2200	5500	6
25	Cylindrical	2200	6820	6
30	Cylindrical	2200	8140	6
40	Cylindrical	2200	10820	6

The Accessory Line-Up
Main Accessories forStainless Steel Fuel Tank with Double Wall:
· Access Manhole: With a standard Ø 600 mm opening, customizable as per purchaser's unique specifications, complete with a gasket and a reliably secure bolted cover.
· Loading Access Port: Incorporates a lockable quick cap and an overfill protection valve for seamless and safe operations.
· Vent: Thoughtfully equipped with a flame arrestor net to ensure maximum safety.
· Suction Line: Features a foot valve and strainer, ensuring efficient and reliable fuel extraction.
· Dip Stick: Constructed from durable aluminium, calibrated for the precise manual measurement of fuel levels.
· Level Gauges: Available in a diverse range of mechanical and electronic options for the most accurate measurement.
Our array of pumps and fuel meters is meticulously designed to meet a wide variety of requirements and applications. Optionally, a sophisticated fuel management system can be installed, providing comprehensive control over fuelling operations and tank levels.
Advantage
The Stainless Steel Fuel Tank, designed with an innovative double-wall structure, stands as a beacon of engineering excellence, offering a multitude of exceptional advantages as detailed below: 1 Security:
Crafted with precision, the inner layer of 6mm thick stainless steel delivers unparalleled strength, far surpassing the common 5mm standard. This robust construction ensures unprecedented integrity and endurance.
The exterior layer, constructed from high-strength reinforced fiberglass with a thickness of at least 2.5mm, showcases outstanding resistance to compressive shocks, corrosion, and electrical erosions, safeguarding against the harshest conditions.
Through groundbreaking technology, we achieve a precise 0.1mm gap between these layers, a feat that preemptively neutralizes potential risks. A sophisticated senior leak detector tirelessly monitors in real-time, ensuring swift intervention against any leakage threats.
2 The economy is practical:
The double-walled fuel tank has been meticulously engineered to outlast ordinary tanks by 5 to 10 times, providing a reliable lifespan of no less than 30 years of secure service. Its design facilitates easy installation, dramatically slashing construction times and financial outlay.The fiberglass fuel tank's maintenance demands are reduced to a tenth compared to standard oil tanks, effectively minimizing maintenance-related expenditures.
3 Environmental protection:
Boasting an innovative double-layer design with a minimal 0.1mm gap, our system ensures any leakage is contained within the outer FRP layer, preventing soil and water contamination. Additionally, the outer FRP resists electrolytic corrosion from groundwater and seawater.
Company introduction
At Guangtai Intelligent Manufacture & Technology(Jiangsu) Co., Ltd, we specialize in providing comprehensive turn-key energy equipment solutions for enterprises. Our offerings include energy equipment supply, station construction, government permit applications, fuel dispenser systems, station management, and more. We resolve diverse challenges in energy operations. Having successfully established over 500 stations in China, our solutions are trusted across military, petrochemical, aeronautics, automotive, and transportation sectors.
Founded in 2017, Guangtai Intelligent Manufacture & Technology (Jiangsu) Co., Ltd is strategically located at No.200, Dingdian, Zhennan Village, Dantu District, Zhenjiang City, Jiangsu Province, covering 40,000. We possess a dedicated R&D team and are fully equipped with state-of-the-art facilities. Our achievements include numerous national patents and comprehensive test reports.
Certification:
Showcasing formidable technical expertise, cutting-edge equipment, and pioneering technology paired with impeccable detection capabilities, our company has established a robust quality assurance system. We proudly hold UL certification, ISO9001 Quality Management System certification, ISO14001 Environmental Management System certification, and OHSAS18001 Occupational Health and Safety Management System certification.

Why choose us:
1. Our expert design team excels in crafting custom steel tanks tailored to specific client requirements. We encourage the submission of drawings or samples for bespoke oil tank fabrication.
2. With a rich heritage spanning 20 years in the steel tank industry,we guarantee impeccable quality and reliability across our product range. Our highly skilled production team, leveraging cutting-edge equipment, consistently delivers superior quality products that set industry benchmarks.
3. Our extensive global after-sales service network offers thorough technical support, ensuring unparalleled service efficiency and complete client satisfaction, irrespective of your location.
4. Our products boast a strong international foothold, having achieved export success in vibrant markets such as Singapore, India, Australia, Japan, Nigeria, Angola, Djibouti, Ecuador, and South Africa.

---
