High Quality Stainless Steel Milk Tank Ice Cream Milk Cooling Tank Dairy Processing Machine for Sale

Product Description

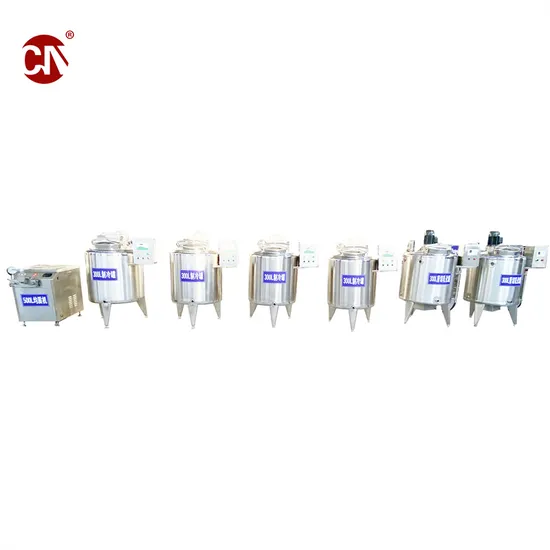

Batch Ice Cream Production Line Equipment
Pre-treatment Equipment Line: Mixing Tanks - Homogenizer- Pasteurizer-Pre-Cooling-Aging Tank--CIP cleaning
Main Features Suite for different kinds of liquid food,such as ice cream Easy to operate and clean High Control temperature accuracy Good energy saving Process flow: Mixing →filtration→homogenization→sterilization→cooling→adding spices→Aging→freezing→filling→hardening→packaging→storage

	Ingredients
	↓
	Mixing 50-60ºC
	↓
	Homogenizer 50-60ºC 150-180bar
	↓
	Sterilization 77ºC 15 min 85ºC 16-30S
	↓
	Homogenizer 50-60ºC 150-180bar
	↓
	Cooling 0-6ºC
	↓
	Aging 0-6ºC
↓		↓
Soft ice cream		Packed
	↓
	Frozen -2ºC∼-5 ºC or -5ºC∼-6ºC	Base ice cream
	↓
	Filling
↓		↓
Packed		Frozen -25ºC
↓		↓
Frozen -25ºC		Cut
↓		↓
Hard ice cream		Chocolate topping
↓		↓
Cold chain below -23ºC		Packed
		↓
		Frozen -23ºC
		↓
		Purple ice cream

Specifications

Model	100L	150L	200L	300L	500L	1000L
Tank Inner Dia	630mm	630mm	630mm	850mm	900mm	1200mm
Tank Outer Dia.	740mm	740mm	740mm	950mm	1000mm	1300mm
Tank Inner Height	400mm	600mm	670mm	750mm	850mm	900mm
Capacity	100L/Batch	150L/Batch	200L/Batch	300L/Batch	500L/Batch	1000L/Batch
Sterile Temp.	45-90degree (adjustable)	45-90degree (adjustable)	45-90degree (adjustable)	45-90degree (adjustable)	45-90degree (adjustable)	45-90degree (adjustable)
Power	380V 9KW/220V 6KW	380V 9KW	380V 9KW	380V 12KW	380V 24KW	380V 48KW
Outer Size	800*750*1230mm	800*750*1430mm	800*750*1530mm	1000*1100*1650mm	1300*1100*1850mm	1600*1400*2200mm
Weight	100kg	150kg	180kg	220kg	270kg	400kg

Details :
Related Products:
Processing Line Equipment
20Ton/Hour Milk, Yogurt Production Line Equipment
500L Milk or Yogurt production Line Equipment
Application:
Company Introduction: Chun Nuo Intelligent Manufacturing (Shanghai) Technology Co., Ltd.
Established in 2014 in Jiading District, Shanghai. We have our own production base,which located in Yangzhou City, Jiangsu Province. Our company is mainly engaged in the food, beverage, beer, condiments, pharmaceutical and chemical industries, and is responsible for the design, production and manufacturing of complete line equipment for fluid food turnkey projects. The main equipment includes pasteurizer, UHT sterilizer, Mixing Tank System, CIP systems, stainless steel tanks, Aseptic tanks, aging tanks, cheese Jar and Cooling tank, various types of individual equipment.
We have a large number of professional and technical personnel and technical service teams with many years of installation experience at home and abroad. We have undertaken the overall installation of many large-scale projects. The company provides world-class professional engineering installation experience and management experience in a work spirit of excellence. , provide users with good after-sales service and wholeheartedly meet user requirements. Professionals are the foundation of good service. Our after-sales service personnel have practical experience and system training in equipment use and maintenance, and truly master professional knowledge and on-site processing skills. method.
Exhibition:
Certification:
Shipment:
FAQ:
Q1: Do you have reference project? A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory. And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Contact our sales people you can get video of our reference running machine Q2: Do you have after-service stations? A2: our engineer can go to overseas for aftersales service Q3: Do you provide customized service A3: We can design the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years. Q4: What's your guarantee or the warranty of the quality if we buy your machines? A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support. Q5: How long time for installation? A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

---
