HOT SALE! GOOD PRICE ISUZU VC46 6*4 LHD 10T telescopic crane boom mounted on cargo truck
ISUZU VC46 6*4 LHD 10T telescopic crane boom mounted on cargo truck adopts ISUZU VC46 one row and a half driver cab, 4605+1300mm wheelbase, 6UZ1-TCG40 ISUZU 350hp diesel Euro 4 engine, 9JS150TA-B feastgear 9 speed manual gearbox, 11.00R20 16PR tires, air conditioner, air cut braking, etc.
The overall dimension(L*W*H) of ISUZU VC46 10tons mobile truck with crane is 10135*2465*3550(mm); while the cargo body dimension(L*W*H) of ISUZU 10T cargo truck with crane is 6500*2300*550(mm); Clients choose to install XCMG brand/CLW brand 8tons/10tons telescopic/knuckle crane boom.
The specification of ISUZU VC46 6*4 LHD 350hp diesel 10T mobile truck with crane manufactured by Chengli Special Automobile Co., Ltd. is as below.
Product name
| ISUZU 6*4 10tons telescopic crane boom mounted on cargo truck for sale
|
Chassis type
| ZZ
|
Parameters
| Overall dimension length/width/height (mm)
| 10135*2465*3550
|
Cargo body dimension (L*W*H)(mm)
| 6500*2300*550
|
GVW(kg)
| 25000 (Kg)
|
Kerb Mass(kg)
| 13900 (Kg)
|
Approach angle/ Departure angle(mm)
| 17/12 (°)
|
Front suspension/rear suspension(mm)
| 1370/2210
|
Fuel Type
| diesel
|
Max Speed
| 90
|
Engine
| Type
| 6UZ1-TCG40
|
Displacement/Power(kw)
| 9839ml/350hp
|
Manufacturer
| ISUZU
|
Chassis
| Drive Type
| 6*4 LHD
|
Wheelbase(mm)
| 4605+1300mm
|
Tread(front/rear)
| 2060; 1855/1855 (mm)
|
Transmission
| 9JS150TA-B FASTGEAR 9 speed manualgearbox
|
Braking system
| Air braking
|
Cab
| ISUZU VC46
|
Number of spring axle(front/rear)
| 7/11
|
Tire Type
| 11.00R20 16PR rail tires
|
Air-condition
| Yes
|
Upper part(cargo van and crane boom) main parameters
|
Upper body
| Cargo body box dimension
| 6500*2300*550(mm)
|
Material
| Carbon steel
|
Side sheet thickness
| 2mm thickness
|
Bottom sheet thickness
| 3mm thickness
|
Painting
| Upon request
|
Crane boom main parameters
|
Crane boom
| Choose to install CLW brand 10T 4sections knuckle crane boom
|
Lifting mass(kgs)
| 10,000kgs
|
Lifting height(m)
| 15.6m
|
Working radius
| 13.5m
|
Remark
| Full hydraulic and full rotational
|
The color of the whole truck is upon request.
|
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/mob.: 0086 13329899995.

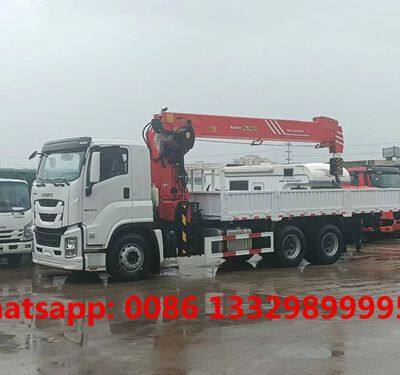

More pictures of ISUZU GIGA 6*4 LHD cargo truck with crane is as below.
The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes.
>>
