1X8 1X16 PLC Splitter Wall Mount Box 16 Port FTTH Terminal Box

US$9.00-13.00 1 Piece (MOQ)

Basic Info.

Model NO.
FTKS-1805-16E
Certification
CE, ISO, RoHS
Condition
New
Material
Plastic
Dimension
Ftks-1805-16e
Application
FTTH FTTB FTTX Network
Color
Grey,Black
Capacity
16 Port
Operation Temperature
-40~+85°c
Transport Package
Carton
Specification
FTKS-1805-16E
Trademark
Takfly
Origin
China
HS Code
8517622990
Production Capacity
5000000 PCS/Month

Product Description

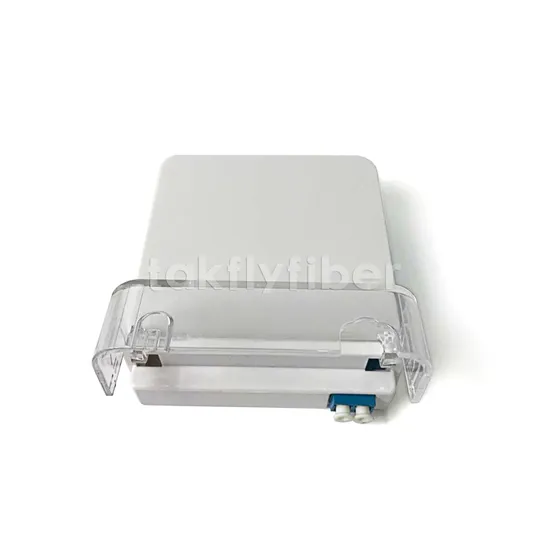

1x8 1x16 PLC splitter wall mount box 16 port FTTH terminal box
Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Feature & Benfits
Total enclosed structure.Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses. Parameter
Model Description Size(Pic 1) Max Capacity Installation Size(Pic 2) Cable ways
A*B*C(mm) SC LC PLC D*E (mm)
FTKS-1805-8B Distribution Box 250*190*72 8 16 16(LC) 130*82 Not cup-joint
FTKS-1805-12D Distribution Box 250*190*72 12 24 16(LC) 130*82 Not cup-joint
FTKS-1805-16E Distribution Box 293*219*84 16 32 32(LC) 155*82 Not cup-joint / cup-joint
