US$2,200.00-20,000.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Object
Animal Feed
Processing Technics
Roller Crumbling
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Roll Crusher
Applicable Materials Shape
Granular
Discharge Motor Power
0.75/1.1 Kw
Product Temp.After Cooling
Less Than Room Temperature+5 ºC
Transport Package
Wooden Case
Production Capacity
200PCS/Year
Product Description
Product Description

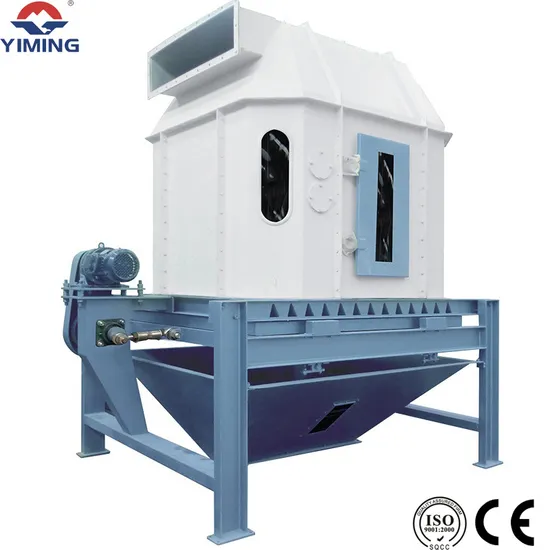

Animal feed cooling equipment chicken feed cooler
1. Feed counter-flow cooler is suitable for cooling various kinds of pellets such as pelleted feed, expanded feeds, extruded feeds and flake feeds etc.
2. Feed counter-flow cooler is structurally arranged in a vertical way, the appearance is simple and beautiful.
3. Feed counter-flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging.
Performance
1.Counter-flow cooling,cool the pellets and lower humidity,after cooling the pellet temperature above room temperature 3-5 ºC ; precipitation rate=3.5%.
2.Rear elastic support reduces the noise greatly and improves the classification performance.
3.Using slide valve discharge structure,stable and reliable operation , the residual is small.
4.Suitable for cooling of various granular materials.
Working Principle
The working principle of feed counter-flow cooler
When pellet came out from Pellet Machine, it contains determinate moisture as 8~17%, temperature around 70~85°C, if the environment air with high humidity, pellets will absorb moisture from air, and will get mildew when storage. So a Feed Pellet Cooler is needed to keep pellets dry and safe to achieve storage requirement.
Product Parameters
| Model | SKN1.0 | SKN2.5 | SKN4.0 |
| Capacity (t/h) | 1-2 | 4-5 | 10-15 |
| Main powder (KW) | 0.75 | 1.5 | 1.5 |
| Volume(m³) | 1 | 2.5 | 4 |
| Cooling time | ≥ 10-15 min |
| Discharge motor power(kw) | 0.75 | 1.1 | 1.1 |
| Airlock Power | 0.75 | 0.75 | 0.75 |
Detailed Photos
Workshop processing ability
Customer Visit
>>
