Product Description
Product Description

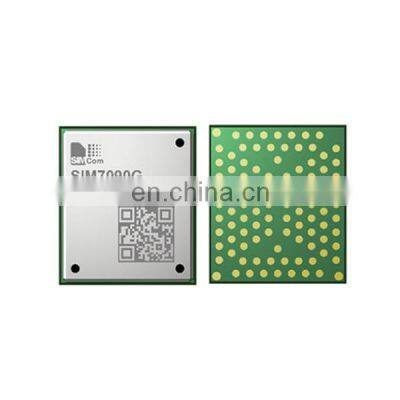

DescriptionSIM7090G Product DescriptionSIM7090 is the LPWA module which supports wireless communication modes of Cat-M/Cat-NB.SIM7090 adopts LGA form factor and has a compact size of 14.8mm*12.8mm which makes it ideal for compact products design.SIM7090 has powerful expansibility with abundant interfaces including UART, GPIO, PCM, SPI, I2C etc. The SIM7090 is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.Product Advantages• With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7090G can extend battery life up to 10 years• SIM7090 provides deeper coverage enhancement compared to GSM• Ultra compact size for wearable tracker applicationGeneral FeaturesDataSupport BandsCat-M B1/B2/B3/B4/B5/B8/B12/B13/B14/ B18/B19/B20/B25/B26/B27/B28/ B66/B85Cat-NB B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B26/B28/B66/B71/B85LTE RF Power ClassClass 5 (Typ. 21dbm)Supply voltage range2.7V-4.8VControl Via AT CommandsOperation temperature-40℃ ~ +85℃Dimensions14.8*12.8*1.8mmWeightTBDCat-MUplink 1119KbpsDownlink 589KbpsCat-NBUplink 158.5KbpsDownlink 127KbpsPower ConsumptionOther FeaturesPSM TBDSleep TBDIdle TBDeDRX TBDTCP/UDP/HTTP/HTTPS/FTPTLS/DTLS/PING/LWM2M/COAP/MQTTAYLA CloudFirmware update via USBFOTAEATInterfacesCertifications(plan)UARTSIM (1.8V)PCM/I2SSPII2CGPIOADCUSBFCC*/IC*/CE*/RCM*RoHS*/REACH*Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
