US$11,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
CE, ISO 9001
Table Travel (mm)
2000X360mm
Spindle Speeds
50-1520 Rpm
Voltage
380V 415V 220V 600V
Three Axes Travel
Auto Gear Transmission
Product Name
Vertical Universal Drilling and Milling Machine
Face Milling Cutter
320mm
Digital Readout Three Axes
Sino Brand
Column Travel
Forward and Back
Worktable Swivel
45 Degree
Transport Package
2300X2700X2300mm
Production Capacity
100 Sets/Year
Product Description

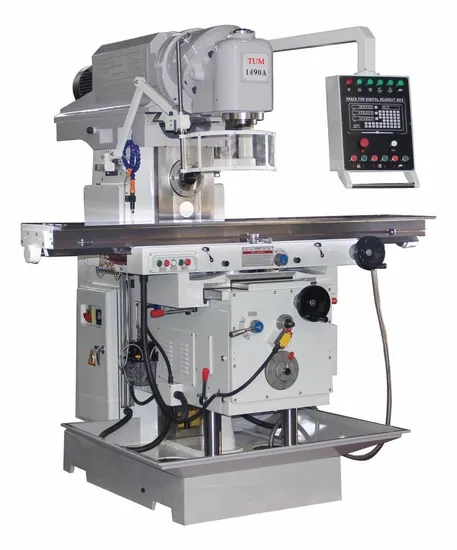

heavy duty knee-type swivel head chinese milling machine TUM1490A
Feature:
- Universal milling head 360 degree
-320mm milling cutter
-With horizontal milling system
-X,Y ,Z axes mechanical gear transmission.
-Central lubrication
-Central panle with Digital readout
| Model | TUM1490B |
| Spindle Taper | 7:24 ISO 50 V /H |
| Distance from Spindle to Column surface | 200-1000mm vertical milling head |
| Distance from Spindle Nose to Table Surface | 210-700mm vertical milling head |
| Max.Distance from Spindle Center to Table Surface(H) | 0~500 mm horizontal |
| Distance from Spindle Center to Table Surface | 280-1160mm vertical head |
| Spindle Speed Range | 50-1520 rpm V
60-1850 r.p.m H |
| Table Size | 2000×360mm |
| Worktable Swivel Angle | ±45° |
| Table Travel | 1620mm |
| Cross | 400mm |
| Vertical | 500mm |
| X,Y axis Feeding | 22.4-560mm/min 8steps |
| Z axis Feeding | 11.2-280mm/min 8steps |
| T-slots of Table | 3 |
| Width | 18mm |
| Distance | 80mm |
| Main Motor | 5.5kw/7.5 kw |
| Feeding Motor | 1.1kw |
| Coolant Pump Motor | 40w |
| Overall Dimensions | 2300×2700×2300mm |
| Net Weight | 4100kg |
Standard accessory:
Electricals as the requirements
All European electricals and motors
LED Lighting
Low voltage controls
Coolant tank with pump
Emergency stop switches
Safety guards
Coolant splash guards
Pendant control
>>
