Basic Info.
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Product Name

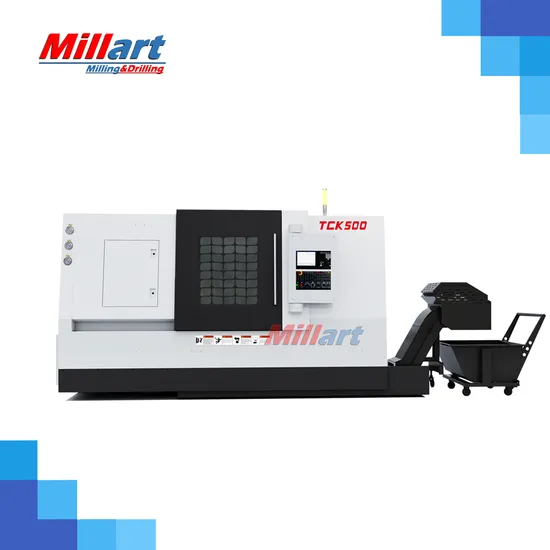

CNC Slant Bed Lathe Machine
Max Turning Diameter
630mm
Max Swing Over Cross Slide
400mm
Max Turning Length
1000mm
Packing Size
3170*1180*1700mm
Transport Package
Plywood Case
Production Capacity
50units/Month
Product Description
Product description:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular arc ,circular cone,inside and outside surface of revolved body. This machine is widely used in sanitary,valve ,electricall appliance,instrument,au
Technical parameter :
| Specifications | TCK4563 |
| Max.swing over bed (mm) | Φ650 |
| Max.turning diameter (mm) | Φ630 |
| Max.swing over cross slide (mm) | Φ400 |
| Max.turning length (mm) | 1000 |
| Spindle nose | A2-8 |
| Chuck size | 10" |
| Spindle motor power (kw) | 11-15 |
| Max.spindle speed (rpm) | 2600 |
| Spindle bore (mm) | Φ87 |
| Max turning Dia Bar (mm) | Φ72 |
| X/Z axis leadscrew (mm) | 40/50 |
| X axis limit Travel (mm) | 350 |
| Z axis limit Travel (mm) | 1120 |
| X/Z axis motor torque (N/m) | 21/21 |
| X/Z axis linear guideway (mm) | 55/55 |
| X/Z axis accuracy (mm) | 0.008 |
| X/Z axis repeat accuracy (mm) | 0.005 |
| Tailstock quill diameter (mm) | Φ100 |
| Tailstock quill travel (mm) | 120 |
| Tailstock travel (mm) | 1250 |
| Tailstock taper | MT5 |
| Machine dimension (mm) | 3170x1180 x1700 |
| Weight (kg) | 5000 |
Standard accessories: Fanuc 0i TF Control system
Drive servo motors from Fanuc
Hollow hydraulic 3 jaw chuck from Taiwan
Hydraulic tailstock
12 stations servo hydraulic turret
Chain type chip conveyor
Ball leadscrew from Taiwan
X,Z axis Linear guide way from Taiwan
MPG
Cutting Cooling system
Work lamp
Central auto-lubricating system
Tri-color warning lamp
Heat exchanger in cabinet
Full closed guard
Tools and tool box
Leveling bolts and blocks
Optional accessories: Live center
Air conditioner in cabinet
Schneide eletronic components
12 stations pwer turret from Taiwan
Power head + Radial power head
C axis
Power turret with Y axis from Taiwan
Power turret center water spray
Spindle bearings from NSK
Renishaw tool probe
Renishaw workpiece measurement system
Hydraulic steady rest
Oil skimmer
Part catcher
Bar feeder
Oil mist filter
Hydraulic tailstock programming
Tailstock hydraulic moving (R axis)
Tailstock with leadscrew and linear guideway (R axis)
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.
Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
