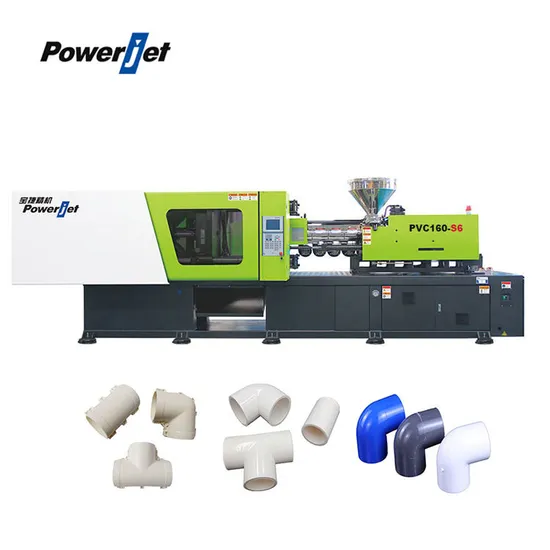

High-Performance PVC Fitting Injection Molding Machine for Sale

Product Description

Products Description
The variable pump and senvo motor can be selected according to produ uction conditions.
Widened safe door design facilitates the removal of PVC products.
Special design of PVC screw can effectively solve the problems of drawing and yellowing of PVC products.
Standard Taiwan TECHMATION control system, the control procedure is designed spialaly for the PVC process.
The charge adopts high torque and low speed motor, which improves the plasticization precision.
Solid state relays for temperature control is used to ensure that the barrel temperature is controlled within a reasonable range.




Excellent air cooling control, can effectively improve the stability of PVC heat-sensitive molding process.
Product Paramenters

Technical Parameter of pvc160-V6
Description	Unit	PVC160-V6
Clamping Force	KN	1600
Opening Stroke	mm	440
Max daylight:	mm	940
Platen size	mm	705x705
Space between	mm*mm	460X460
Max. Mold Height	mm	500
Min. Mold Height	mm	160
Ejector Stoke	mm	140
Ejector Force	KN	49
Screw Diameter	mm	50
Screw L/D Ratio		17.4
Injection Pressure	Mpa	150
Shot Volume	cm3	403
Shot Weight(PS)	g	360
Shot weight(PS)	QZ	12.7
Injection Rate	g/sec	160
Plasticizing capacity	g/sec	34
Screw Stroke	mm	205
Screw Speed	rpm	165
Hydraulic System Pressure	Mpa	17.5
Pump Motor Power	KW	15
Heater Power	KW	12
Oil Tank Capacity	L	260
Machine Weight	Ton	4.6
Machine Dimensions(L*W*H)	m*m*m	4.80x1.75x1.8

Why Choose Us
POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services. Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Project Cases


FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
