Large Width Aluminium Profile CNC Double Mitre Head Cutting Saw Machine

Product Description

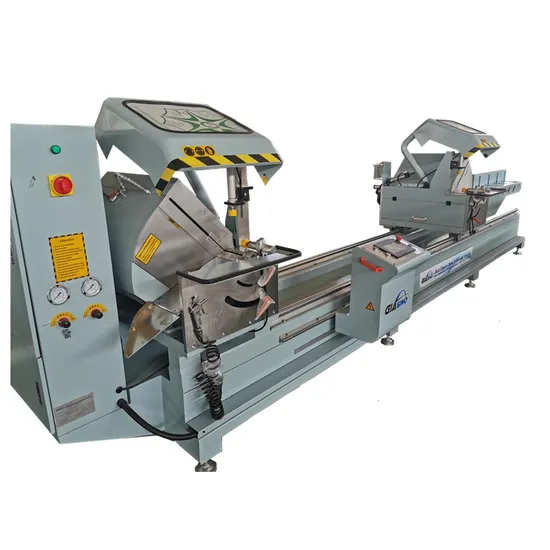

Aluminum Double Head Cutting Saw Machine
Glasino CNC Double Head Cutting Saw is Used for cutting aluminum profile, window and door frame high accurate cutting. Imported high precision linear guiding pair ensured steady and long-term processing accuracy. Right head move by a servo motor. Cutting angle change automatic between ±45° and 90°.
This is Double head cutting saw with digital display
This is Double head cutting saw machine with CNC control
Product Description
Imported carbide saw blade for a high quality cutting and long service life. High precision spindle, saw blade rotating stable
Digital Display optional

Product Parameters

Model	LJZ2-CNC-500x4200
Power Supply	380V50HZ
Motor Power	2x2.2kw+0.7kw
Air pressure	0.5-0.8MPA
Air consumption	200L/min
Saw Blade	D=500mm d=30mm
Cutting Width	max 150mm
Cutting Length	400-4200mm
Cutting Height	max 300mm
Dimonsion	5800×1550×1700mm
Weight	1800kg

Working Samples
Company Profile
Jinan Glasino Machinery Co.,Ltd founded in 2003, is the high-tech enterprises specializing in the production of Glass temperingfurnace CNC glass cutting machine, insulating glass machine, curtain wall glass machine, market share ranks first in the sameline. Main products are: Laminated glass cutting machine, Automatic glass Cutting line, Multifunctional glass cutting machine,Insulating glass production line, Automatic insulating glass CNC sealing machine, Aluminum spacer bending machine, Desiccantfilling machine etc, full set processing machines for insulating glass. We have passed European CE certificate, Switzerland SGScertificate ,ISO 9001: 2008 quality control system, win good reputation from domestic and international customers. Outstandingquality is the basis of brand. Satisfying service is the guarantee or brand. Perpetual innovation is the soul of brand. Glasinopeople will continue making efforts and persist in taking the quality as the life of the enterprise. Continuously improve theproduction management level, research and develop more advanced technology to meet the needs of the market. Glasino will work withyou to create a brilliant future.
1. When can we arrange shipment? We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. 2.What you can do if my machines have problems? 1) We can send you free components to you if your machines are in guarantee time. 2) We can send our engineers to repair your machines 3.Do you provide equipment operation training? A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport. 4. If I make PVC window and door, how many basic machines do i need? 1)double mitre saw 2)Glazing bead saw 3)Mullion cutting saw 4)V cutting machine 5)Water slot machine 6)Lock hole machine 7)End milling machine 8)Welding machine 9)Corner cleaning machine

---
