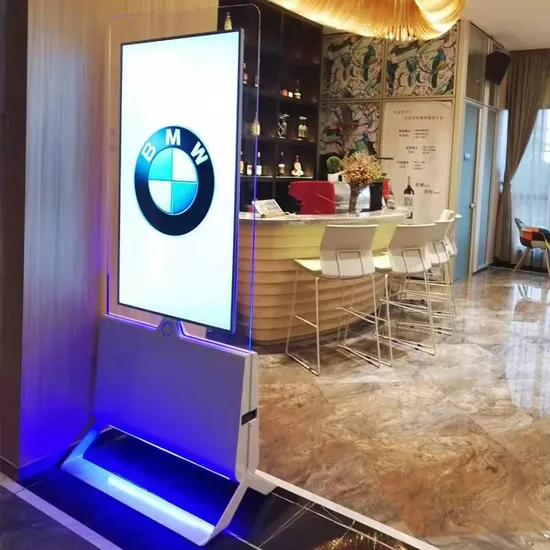

Ultra Slim Double Sided Kiosk for Advertising Digital Signage LCD Display with Android and Windows OS

Product Description

Ultra Slim Double Sided Kiosk for Advertising DIGITAL SIGNAGE LCD DISPLAY with Android and Windows OS
Ultra Thin slim Transparent lcd OLED Display Digital Signage and Displays Advertising Players Screen Display
All of our products series, every design can be made with following function (Both indoor and outdoor):
***USB version AD player: update advertisement by USB (Stand-alone Version)
***Network version advertising player: update advertisement through internet, support both Android OS and UCOS OS, Windows OS (Network Version)
***PC version kiosk (Infrared / capacitive touch screen optional): same function as computer, compatible with Windows7,windows8,Windows XP, Linux, Ubantu, Apple etc. (Built-in PC Version, touch screen optional)
Can also be customized with equipments such as printer, scanner, camera, keyboard,motion sensor, WIFI adaptor etc.
***Android Infrared / capacitive touch screen kiosk: Android OS with touch screen. Can also be customized with equipments such as printer, scanner, camera, keyboard, motion sensor, WIFI adaptor etc.
***LCD video wall, narrow bezel / zero bezel with HDMI or 4K DP display
***All kinds of monitors with or W/O touch, 2K or 4K display, open frame, tablets of all size
***Transparent LCD
***Bar type LCD /strentched lcd display
*** OLED display
*** QLED display
*** LED dispaly
*** Safe Temp. Kiosk for security access control system
PRODUCTS:
From Design:
1, Floor standing model (Can be added wheels or no wheels, can be fasten to floor, can also design according to your idea)
2, Wall mounted screens
3, Hanging screens
4, Horizontal screens From Function: 1,Monitor with or W/O Touch 2, Digital signage 3, Android touch / Non Touch 4,Windows touch / Non Touch
5,Selfservice terminal: can add camera, printer, scanner, led light, etc.

Name		Super slim QLED double sided adverting player: Tow sided can display same content and display different contents. Including free digital signage software.
Panel parameter	Size	55 inch ; 43inch, 49inch
	Display area	55" 680.4*1209.6mm ; 43" 941.184*529.416 ; 49" 1073.8*604MM
	Brand	LG (TFT-LCD+LED back lights)
	Resolution	1920*1080
	Brightness	420cd/m*2
	Color	16.7M
	Aspect ratio	16:09
	Response time	6.5MS
	Contrast	4000:1
	View angle	178°/178°(H/V)
CPU		Quard core Cortex A17 1.8GHz
Mainboard		RK3288
GPU		Quad core ARM Mali-T764 MP
System RAM		DDR3 2GB
System RoM		EMMC 8GB
Storage		TF/USB
DISPLAY		Rotate, two screen display same, two screen display different, picture in picture
IO connectors		INPUT: 2 x USB, 2X HDMI, TFX1,LANX1, SATAX1 OUTPUT: SIGNAL DISPLAYX2, IR REMOTE CONTROLLERX1, AUDI 10WX2 SPEAKER
Wired network		built-in Realtek RTL8103EL
Audio		built-in HD audio 8(Realtek ALC888) audio system
Video format		WMV AVI FLV RM RMVB MPEG TS MP4
Audio format		MP3
Photo format		JPG,JPEG,BMP,PNG,GIF
OS		Android 5.1
OSD Language		Chinese, English, Spanish, Russian, German, French, Arabic, etc.
WIFI		YES
Feature		RTC clock, timer on/off, extend SATA hard disk
3G/4G		Optional
Play Mode		Repeat,Timing,Insert Play and so on
Network		RJ45 Ethernet,Wifi,and other wireless device extended
Environment		Operating Temperature :0°C to 40°C Storage Temperature :-20°C to 60°C Humidity:10%-80% RH at 40°C,
System Power Supply		AC 100V~240V,50/60HZ
consumption		55inch 185W ; 43inch: 155W
Power cord		Yes
TFT panel grade		Imported new panel
Case		Cold rolled steel with powder coating+ toughened glass surface
Package		Inner 4CM PE foam,Middle export carton box,Outer export wooden box
spare parts		ceiling bracket, main box, cover, wireropeX2, Hanging square tube, remote controller, power cable, installation guide.

From Environment:
Indoor and outdoor Screen Size: 10.1" to 105" Display Resolution: 1920*1080 or 3840*2160 Brightness: from 280cd to 3000cd Android: Anvertising screen: RAM 1G, ROM:8G Android OS 4.4.2 Android Touch for use your own Android Software: RAM 2G/4G, ROM: 8G/16G/32G for your choice, Android OS: 5.1, OS 7.1, 9.0 or above. PC or PC touch: CPU: J1900. G1840, I3, I5, I7 optional. Memory: 2G, 4G, 8G 16G optional.
Hard Disk: 500G HHD, 64G SSD, 120G SSD, 240G SSD, 512G SSD, 960G SSD optional. Touch: Infrared Touch or capacitive touch optional. Device: Can add camera, printer, scanner, card reader, password keyboard, fingerprinter device,mouse, bill acceptor, card dispensor, etc.

Name		Super slim QLED double sided adverting player floor standing
Panel parameter	Size	55 inch
	Display area	55" 680.4*1209.6mm
	Brand	LG (TFT-LCD+LED back lights)
	Resolution	1920*1080
	Brightness	420cd/m*2
	Color	16.7M
	Aspect ratio	16:09
	Response time	6.5MS
	Contrast	4000:1
	View angle	178°/178°(H/V)
CPU		Quard core Cortex A17 1.8GHz
Mainboard		RK3288
GPU		Quad core ARM Mali-T764 MP
System RAM		DDR3 2GB
System RoM		EMMC 8GB
Storage		TF/USB
DISPLAY		Rotate, two screen display same, two screen display different, picture in picture
IO connectors		INPUT: 2 x USB, 2X HDMI, TFX1,LANX1, SATAX1 OUTPUT: SIGNAL DISPLAYX2, IR REMOTE CONTROLLERX1, AUDI 10WX2 SPEAKER
Wired network		built-in Realtek RTL8103EL
Audio		built-in HD audio 8(Realtek ALC888) audio system
Video format		WMV AVI FLV RM RMVB MPEG TS MP4
Audio format		MP3
Photo format		JPG,JPEG,BMP,PNG,GIF
OS		Android 5.1
OSD Language		Chinese, English, Spanish, Russian, German, French, Arabic, etc.
WIFI		YES
Feature		RTC clock, timer on/off, extend SATA hard disk
3G/4G		Optional
Play Mode		Repeat,Timing,Insert Play and so on
Network		RJ45 Ethernet,Wifi,and other wireless device extended
Environment		Operating Temperature :0°C to 40°C Storage Temperature :-20°C to 60°C Humidity:10%-80% RH at 40°C,
System Power Supply		AC 100V~240V,50/60HZ
consumption		55inch 185W ; 43inch: 155W
Power cord		Yes
TFT panel grade		Imported new panel
Case		Cold rolled steel with powder coating+ toughened glass surface
Package		Inner 4CM PE foam,Middle export carton box,Outer export wooden box
spare parts		ceiling bracket, main box, cover, wireropeX2, Hanging square tube, remote controller, power cable, installation guide.

Hot Selling Products
Product Specs
Android version

Panel Details	Panel Brand	Samsung/LG
Android	CPU	Quad-Core / Octa-Core
	RAM	2GB/4GB
	ROM ( internal memory )	8GB/16GB
	OS	Android 5.1 or above
Decoding Formats	Video Format	MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,H.264,MOV,WMV,RM,RMVB,etc.
	FHD 1080P Video	YES
	Picture Format	JPG, BMP,PNG,etc.
	Text	TXT
	Audio Format	MP3,WAV
Interface	HDMI Output	1 ( Quad-Core version )
	SD/ TF card slot	1
	USB	1
	RJ45	1
Network	Wifi	available
	3G/4G	optional
	Ethernet	available
Touch screen	option 1	IR touch ( 10 points )
	option 2	capacitive touch (10 points )
Speakers	Speakers	2 x 5W stereo speakers
remote control software	optional
Features
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.
2. Outer shell is made of extra good quality metal material and tempered glass.
3.This machine is of android OS design, which could be connected to internet,and supports remote office cotrol .
4.Remotely report system utilization and memory usage.
5.Content plays automatically upon set up of schedule.
6.Control, monitor and design screen layouts remotely by the remote control office.
7.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.
8.APPs are available on Google Play and APP Store
9.Easy connection to wifi.

PC version

Panel Details	Panel Brand	Samsung/LG/AUTO/ LCD/LED/Chimee
Mini-PC	CPU	i3, i5, i7
	RAM	4GB/8GB
	ROM	500GB HDD or 64/120/240GB SSD
	OS	Windows OS or Linux OS
Interface	HDMI Output	1
	USB	4
	RJ45	2
Network	Wifi	support
	3G	support
	Ethernet	support
Touch screen	option 1	IR touch ( 10-16 points )
	option 2	capacitive touch (10 points )
Speakers	Speakers	2 x 2W or 2 x 5W stereo speakers
remore control software	optional
Features
1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.
2. Outer shell is made of extra good quality metal material and tempered glass.
3.This machine is with mini PC built in, customers can install Windows or Linux freely. Or let us install OS before shipment.
4.Easy connection to Internet.

Thousands of LCD player connected to and controlled by central Server.Players can be national wide or even worldwide.
Many kinds of content type displayed on the screen.
Video, Picture, Audio, Text message, Time & Date, News, and so on.
Shenzhen TOPADKIOSK is highly specialized in the field of LCD Digital Signage products, lcd advertising player, kiosk, LCD DISPLAY, QLED display, OLED display. We have developed our own LCD products Series, such as face recognition terminal with temperature sensor for access control system, safe temperature kiosk, thermal scanner, digital signage, all In One PC, touch screen, interactive table,touch table, PCPA capacitive touch, IR touch screen, lcd video wall, outdoor IP67 High Brightness LCD Digital Signage and TV, etc, the size is available with 7" Inch to 98 Inch etc. These products have been widely used in the USA, Europe, Southeast Asia, the Middle East, Africa and other countries and regions. These products are suitable for advertising in lots of areas, such as buildings, shops, hotels, supermarkets, railway stations, bus stations, airports, taxis, buses and other outdoor areas. Quality and Service is Our Symbol.The most important factor for us to win our customers' hearts and found the long-term business relationships with our customers is quality and service. With these years' research, development and manufacture, we have accumulated our special experience and methods to control the quality through the whole process of designing, material purchasing, manufacturing and marketing. Especially for the material quality, we have founded firm relationships with our suppliers and even invested in some supply companies to directly control quality. We offer 7*24 hours service to all our clients. Our sales person and after-selfteam will keep on line to answer and solve all questions for you. Providing services beyond our customers' expectations is our purpose. Our excellent pre-sales services and after-sales services have earned us many customers' hearts. Customized designs are most welcome! Our advantage is to give solution to our clients according to their needs.

---
