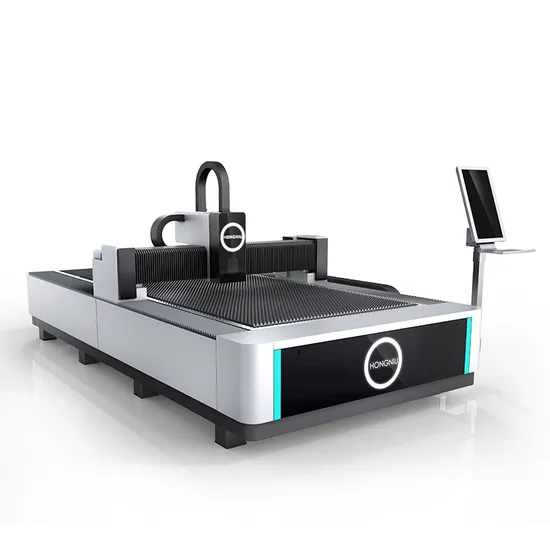

Fiber Laser Cutting Machine CNC Metal Cutter

US$21,450.00 1 Piece (MOQ)

Basic Info.

Model NO.
3015F
Application
Advertising Industry
Cooling System
Water Cooling
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Free Electron Laser
Laser Technology
Laser Flame Cutting
Laser Source
Raycus
Laser Head
Raytools
Water Chiller
Hanli or SA
Motor
FUJI
Transport Package
Shipping by Sea
Specification
3000*1500mm
Trademark
Upbull
Origin
China
HS Code
8456110090
Production Capacity
30 Sets/Month

Product Description

Fiber laser cutting machine cnc metal cutter
Product Description
Fiber laser Cutting Machine meets the parts processing requirements of most industries, working accuracy is stable.
Product parameters

Model HN3015F
Working area 3000*1500mm
Laser type Fiber laser generator
Laser power 1000W
Transmission system Gantry double-drive structure
Lubrication system Full-antomatic
Maximum speed 80m/min
Position accuracy ±0.01mm/1000mm
Reposition accuracy ±0.03mm/1000mm
Graphic format supported CAD,DXF
Working environment Temp:0.40ºC,humidity:≤80%,No condensation
Total power Around 15kw
Power supply Triphase220V/50HZ/60HZ
Overall dimension 4600*2280*1800mm

Detailed images
Professionl fiber laser cutting head
Raytool laser head,
fiber cutting head with Swiss technology and a professional QBH fiber optic output interface for a highly
sealed and precise focus calibration. Owing to the excellent performance of high-speed capacitive sensor, the cutting gap can be
as short as 0.1mm, which not only improves the cutting performance, but also reduces the gas consumption
Raycus Laser Source
Raycus/Max/IPG, multiple choice
Different brands, different laser power are available. The higher power, the thicker cutting thickness.
Servo motor
Fuji/YASKAWA servo motor
servo motor with fast dynamic response provides speed and performance stability.
The maximum idle speed of the machine can reach up to 100 m/min
Cypcut Control System
can remotely control computers and machines, adjust parameters and solve problems. Efficiency- One PC can control several machines.
S&A Water Chiller
With excellent quality and leading research retrength, S&A has become a leading enterprise in the China industrial refrigeration industry.
Taiwan HIWIN rail
High carbon content, high compressive strength and high hardness.Low thermal sensitivity reduce the loss of equipment in using.

Product advantage
(1) High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
(2) The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
(3) The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
(4) It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(5) Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
Packaging and Shipping
1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 2 years warranty, during the period, any problem happen, we are responsible to solve. And if any part of the machine was broken, which happens rarely,
3.Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
Our Services
Sales Service
Pre-sales service * In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products. * Every machine must be tested before delivery, all of them are absolutely qualified.
After-sales service * User manual and Installation video will be sent to you together with machine. * Provide online technical support, and, the engineer can be sent to your local to install or adjust if necessary. * 24 months guarantee of the whole machine. * 12 months warranty for Main parts(excluding the consumables and belongs to the user irregularities operating), shall be changed free of charge if there is any quality problem during the warranty period. * Provide the consumable parts at an agency price when you need replacement in future.

FAQ
1.Q: Are you factory or trading company?
A: We are factory, which manufactures CNC cutting machines , with 6 years experience in CNC machine's industry.
2.Q:Why should we choose you ?
A:If you choose us, you will get top quality,best service,reasonable price and reliable warranty.
3.Q:Can you arrange the shipment for us?
A:Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
