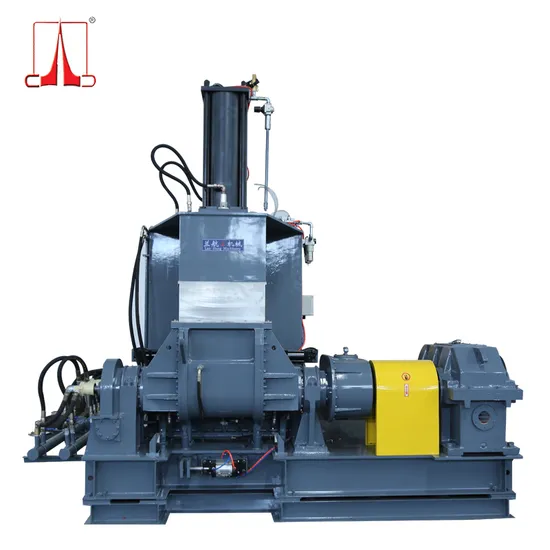

3L 5L Lab Rubber Dispersion Kneader Rubber Banbury Mixer

Product Description

PRESSED KNEADER DISPERSION KNEADER Product Description Technical Parameters:

ITEM/MODEL	LX-1.5L	LX-3L	LX-10L	LX-35L	LX-55L	LX-75L	LX-100L	LX-160L	LX-190L	LX-270L	LX-410L
ROTOR TYPE	TANGENTIAL ROTORS
RAM DRIVER	HYDRAULIC or PNEUMATIC
Total Volume	1.5L	3L	10L	35L	55L	75L	100L	120L	160L	270L	410L
FILL FACTOR	75%
MainRotor Speed(r/min)	6~6 8~80 10~100	6~6 8~80 10~100	4~40 5~50 6~60
Rotor speed ratio	1:1.17
Power(kw)	22 37 55	37 55 75	75	110	132	160	220	400	500	1250 1500	1250*2
Weight(T)	2,3	3	6	9	12.5	16	22	28	36	45	60

ITEM/MODEL

LH-1.5Y

LH-3Y

LH-10Y

LH-35Y

LH-55Y

LH-90Y

LH-135Y

LH-160Y

LH-190Y

LH-250Y

LH-320Y

LH-410Y

ROTOR TYPE

INTERMESHING ROTORS

RAM DRIVER

HYDRAULIC or PNEUMATIC

Total Volume

1.5L

3L

10L

35L

55L

75L

100L

120L

160L

270L

410L

FILL FACTOR

65%

MainRotor Speed(r/min)

6~60 8~80 10~100

6~60 8~80 10~100

4~40 5~50 6~60

Rotor speed ratio

1:1

Power(kw)

37 55 75

55 75 90

110

160

250

280 350 450

500 630 750

630 750 800

750 1000 1250

1250 1500

1250 1500 1800

2500

Weight(T)

2.8

3.5

6.6

9.5

12.9

16.5

22.5

28.5

37

46

61

79

Introduction:
Dispersion Mixer has become the most commonly used type of mixer in the rubber and plastics industries. The tilt mixer with its uniquely designed rotors, rotor blades, mixing chamber and pressure lid allows for thorough material flow and controlled shear mixing within the mixing chamber. This intensive mixing achieves a uniform compound mixture with exceptional dispersion of materials.
Features:
1.Blade of rotors are well designed for better dispersion&faster cycle time.
2.Effective cooling system to control overheating.
3.Easy Cleaning for color change.
4.Hydraulic tilting system for trouble free working.
5.Simple operation through quality designed electric panels&safety.
Advantages of our mixer:
Mixing rotors adopts Ni-Cr-Mo alloy, the wearing parts welded German imported wearing resistant high speed steel, and chrome plated.
Mixing chamber body adopts wear resistant alloy integral casted, tangential area welded German imported wearing resistant high speed steel, and chrome plated.
Side wall anti-leakage device adopts high advantage material: high pressure casted epoxy glass cloth with the characteristics of wearing resistant, easy for maintenance, not easy to cause chemical reaction.
Pressuring cover adopts "M" structure, which ensures material mixed more evenly and thoroughly.
Main motor electrical current meter in the control panel; During production, once when the mixer chamber pressure is too high, and current exceeds the set value, the terminal contactor with solenoid valve will control the pressuring cover's raising to reduce down the pressure.

---
